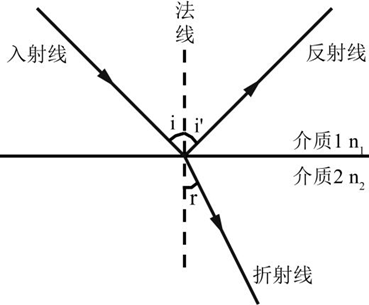

图 1 光的折射和反射示意图
，入射角
。由图中可以看出，光波遇到分界面时分为两束，一部分返回介质 1 中发生反射现象，一部分进入到介质 2 中发生折射现象。此外，由图中还可以看出光波在不同介质中的波长和相位，并大胆的推测，一束同频率的光波，入射到不同折射率的介质中时，在折射率小的介质中具有更大的波长。通过仿真模拟光波入射到不同介质的分界面，可以弥补传统的几何方法中的不足，提供一个更接近真实的训练环境，大大地加深对反射折射定律的理解。
时，折射角 r=90°，因而当入射角

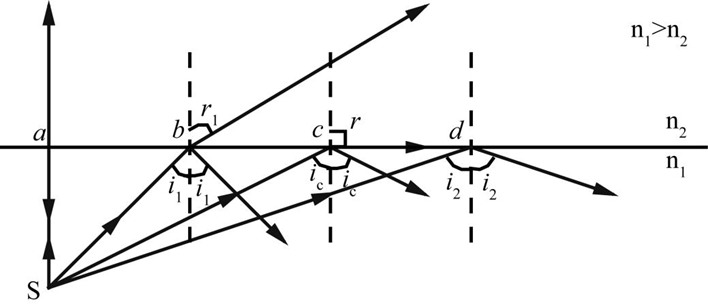

时，光线就不再折射而全部被反射（图 3 所示），这种现象称为全反射，入射角
称为全反射临界角。由折射定律可得
由几何光学的研究方法我们只能了解光全反射的规律，无法了解光的波动等其他特性。

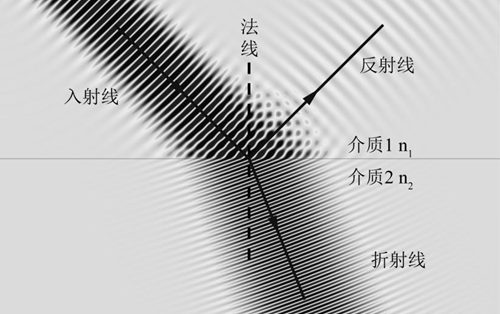

图 2 仿真模拟光的折射和反射
、
，由折射定律可得临界角
。为了验证全反射定律，我们选取了 3 个不同的入射角为30°、45°、60°，仿真结果如图 4 所示。从图（a）中可以清楚地看到，当入射角小于临界角 ic 时，光波的绝大部分能量进入折射率低的介质中，并发生折射现象，只有小部分的能量发生了反射现象，又回到原来的介质中。从图（b）中可以看到，当入射角等于临界角ic 时，大部分的能量发生了反射现象，回到原来的介质中，值得注意的是有很小一部分能量沿着平行于交界面传播。从图（c）中可以看到，当入射角大于临界角 ic 时，所有的能量都将发生反射现象，回到原来的介质中，也就是全反射。我们注意到图（c）中，当光发生全反射时， 在分界面处仍然有一部分能量进入到第二介质，但是其振幅在第二介质中是呈指数衰减，沿着分界面传播。这就是前面所提到的隐失波。这在几何光学研究光的传播时无法直接观察到，但是在我们的模拟仿真研究方法中可以很形象地观察到，这便于加深对隐失波的出现条件极其形态性质的深入理解。

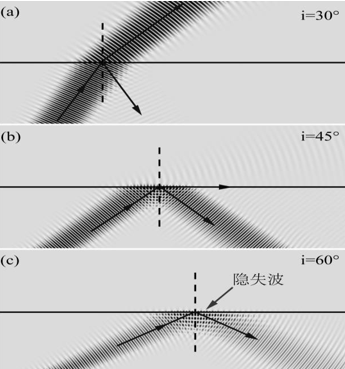

图 4 仿真模拟光的全反射
