Simulating a Gate Valve

John Dunec, Ph.D. VP of Sales, NW USA

Welcome to the Lunch-Time Tutorials!

•Solve One Problem Using COMSOL Multiphysics

•This Tutorial: Flow Through a Closing Gate Valve

•30-35 minutes duration

•Short Q&A at end

Upcoming Tutorials:

•Positive Displacement Pump

•One-Way Flapper Valve

www.comsol.com/events

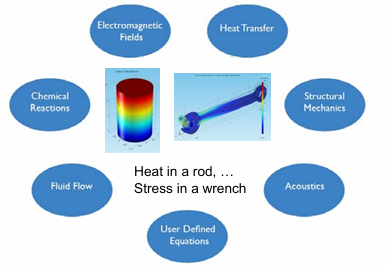

Individual Physics you Learned in School

Individual equation sets … Applied to simple,

(and sometimes not-so-simple) single-physics problems

In Reality – Multiple Sets of Physics Interact

Typically bi-directional nonlinear coupling between multiple physical processes

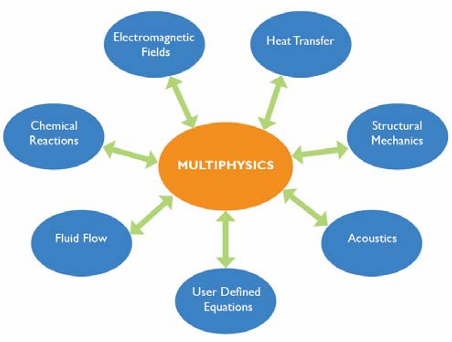

Multiphysics: Multiple Interacting Phenomena

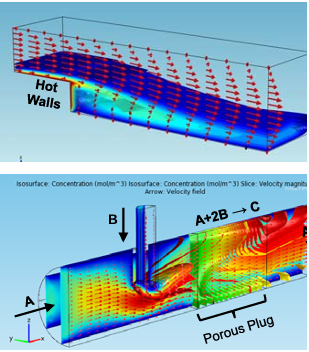

Could be simple:

• Heat

•Convected by Flow

Could be complex:

•Flow

–Navier-Stokes in tubes

–Porous flow in plug

•Mass Transport

–Three chemicals: A,B,C

–Reacting: A+2B → C

•Heat Transfer

–Exothermic reaction

–Reaction rate temperature dependant

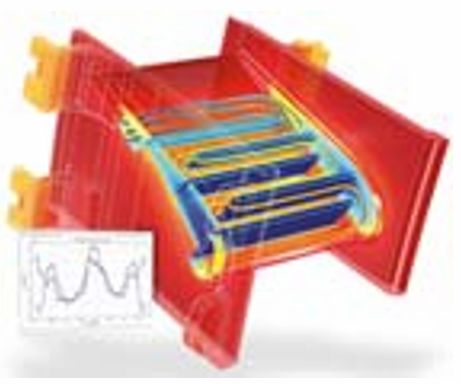

COMSOL Multiphysics Solves These!

•Multiphysics – Everything can link to everything.

•Flexible – You can model just about anything.

•Usable – You can keep your sanity doing it.

•Extensible – If its not specifically there…add it!

Trusted by 80,000+ Users Worldwide

Anywhere you can type a number … you can type an equation

• Or an interpolation function …

• And it can depend on anything known in your problem

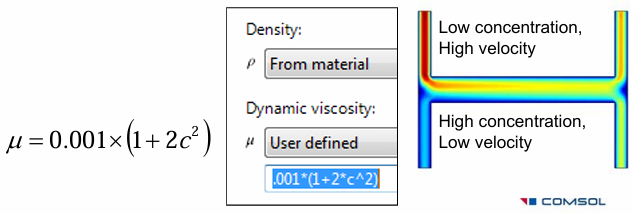

• Example: Concentration-dependant viscosity:

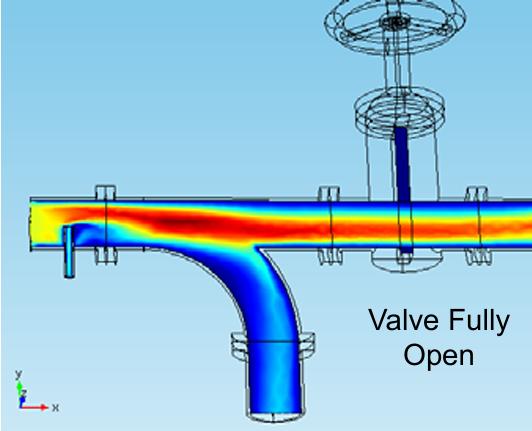

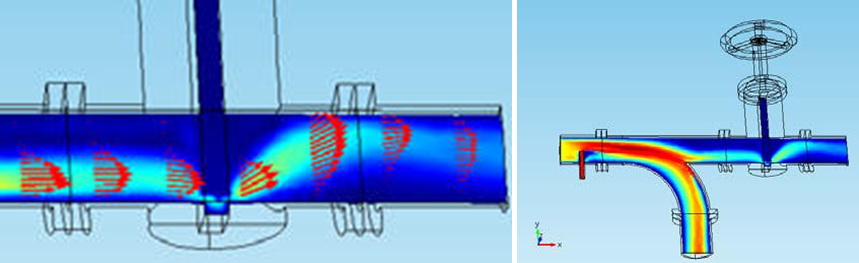

Simulating a Closing Gate Valve

•Change in Topology makes ALE Moving Mesh Approach Difficult

•Use Nonlinear Material definition instead

•Flow Rate vs Percent Open?

•Where does feeder stream go?

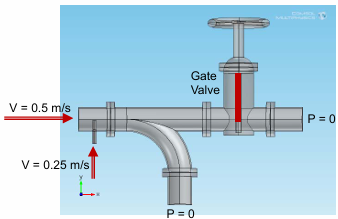

Problem Definition, Flow Boundary Condn’s

•Gate valve redirects flow

•Feeder line injects fluid stream

Standard 4.5” Steel Pipe: OD = 4.5” ID = 4.03”

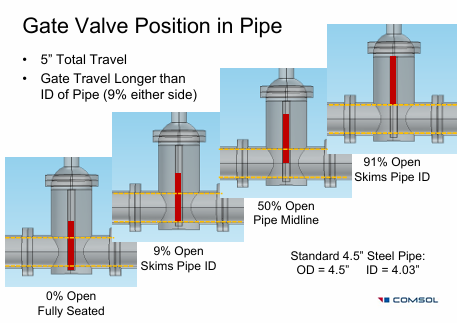

Gate Valve Position in Pipe

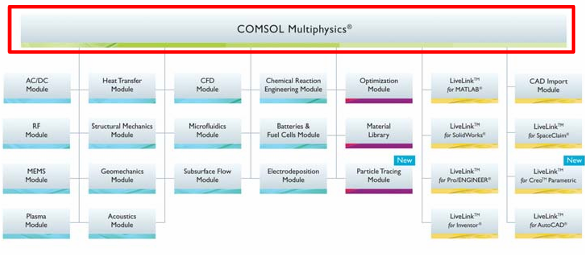

COMSOL Products Used–This Tutorial

Everything in this example can be done with our base package: COMSOL Multiphysics

Tutorial Roadmap

First: Setup and Solve Flow

• Choose Physics

• Import Geometry Sequence

• Choose Materials (Water)

• Set Inlet & Outlet B.C.’s

• Mesh –Clean Geometry

• Remesh

• Solve

Next: Model Valve Itself

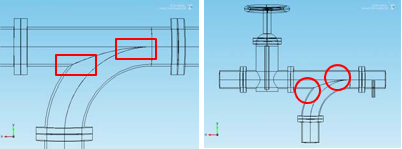

Mesh Challenge: Tangent Joint of Y

Very Narrow Triangle – Mesher Objects

Solution: Virtual Geometry Operation

• Join Problematic Surfaces

• Both Inside Pipe and Outside
