案例分享丨Delkor Rail如何用Endurica攻克轨道减振世界级难题？

Based in Sydney Australia, Delkor Rail has worked on projects in Australia and all over the world, including the London Underground, and projects in Canada, USA, Madrid, Barcelona, Singapore, Hong Kong, Malaysia, Taiwan, Germany, Switzerland, and New Zealand.

Delkor Rail总部位于澳大利亚悉尼，参与过澳大利亚及全球多个项目，包括伦敦地铁，以及加拿大、美国、马德里、巴塞罗那、新加坡、中国香港、马来西亚、中国台湾（地区）、德国、瑞士和新西兰的项目。

Elastomeric Products Include:

弹性体产品包括：

Track Products:

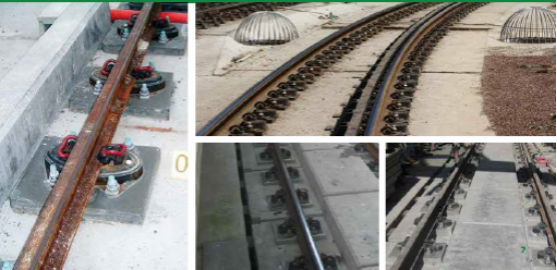

① Multiple rail fastening systems including those focused on high vibration and noise attenuation
② Track superstructure components
③ Rail fixation components

轨道产品：

① 多种轨道紧固系统（含高振动与降噪型）
② 轨道上部结构部件
③ 轨道固定部件

Rolling Stock:

① Suspension components
② Bogie components
③ Air spring refurbishment program

机车车辆产品：

① 悬挂部件
② 转向架部件
③ 空气弹簧翻新项目

Platform Gap Filler:

A sturdy, hard-wearing rubber strip mounted along the edge of a train platform to reduce the gap between the platform and the entrance of a passenger train

The software has been working well for us. The combination of Ansys, the material data we have obtained and the ability to perform fatigue simulations has allowed us to design products that would not have been possible previously (without extensive physical testing)

— Robert Barnbrook Product Engineer Delkor Rail Pty Ltd.

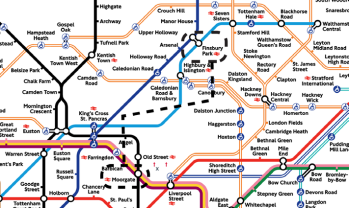

Noise complaints from residents near the Moorgate Branch rose to the attention of London’s Mayor and political pressures resulted in a budget being formed to deal with noise complaints — and Network Rail dedicating a team for a quick solution.

Moorgate支线附近居民的噪音投诉引起伦敦市长关注，政治压力促使预算拨款以应对噪音问题，Network Rail组建团队寻求快速解决方案。

Delkor Rail’s challenges included maximizing N&V reduction, maintaining TOR, using the existing hole centers, retaining BH rail and key protocols, and completing all work through EN13481 Cat C testing. All while assuring sufficient durability.

Delkor Rail面临的挑战包括：最大化降噪减振、保持轨道几何参数（TOR）、利用现有孔位中心、保留BH钢轨与关键协议，并通过EN13481 Cat C测试完成所有工作，同时确保足够的耐久性。

Endurica’s tools help Delkor to fulfill regulatory requirements on part durability and allows rubber stiffness to be optimized for the type of stock and speed.

Endurica工具帮助Delkor满足部件耐久性的法规要求，并针对车辆类型与速度优化橡胶刚度。

Delkor’s client, UK-based Network Rail Acceptance Panel (NRAP), gave full acceptance of the solution.

Delkor的客户英国Network Rail验收委员会（NRAP），已全面认可该解决方案。

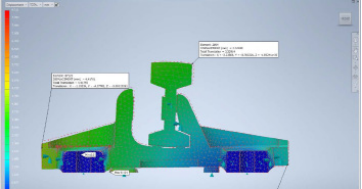

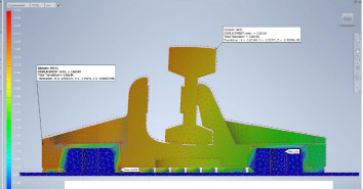

Delkor uses Endurica CLTM

with ANSYS to model Egg
baseplate durability.

Delkor运用Endurica CL™联合ANSYS对Egg基板进行耐久性建模。

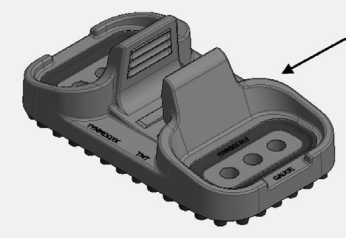

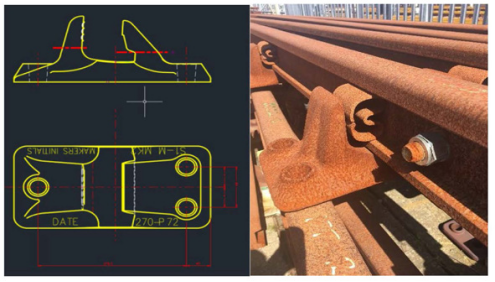

重新设计的铸造工艺图示

Redesigned casting image

Endurica Value Add for Delkor Rail:

① Save costs of multiple physical tests for design iterations
② Make the best design decisions for durability
③ Shorten product development cycles

Endurica为Delkor Rail带来的价值：

① 节省多次设计迭代的物理测试成本
② 为耐久性做出最佳设计决策
③ 缩短产品开发周期

Before Endurica, we went through 40+ design iterations trying to reduce the strain amplitude as much as possible. We also went through 4 or 5 rounds of physical testing before a successful test.

Since we adopted Endurica CL, we have been able to compare the fatigue life for new designs against previous designs that we have been successful with. This has meant that we can produce a suitable design with only a handful of design iterations and a single physical test.
— Liam Turbet Technical Manager Delkor Rail Pty Ltd

使用Endurica前，我们进行了40多次设计迭代以尽可能降低应变幅值，还需经过4-5轮物理测试才能成功。

自采用Endurica CL后，我们可将新设计的疲劳寿命与既往成功设计对比，仅需少量迭代与一次物理测试即可完成设计。
—— Liam Turbet，Delkor Rail Pty Ltd 技术经理
