AI-structure Copilot v0.4.2：剪力墙设计算法再升级，又省又合规！
0
引言
引言
我们的建筑结构AI设计助手AI-structure Copilot再次迎来重要升级！本次更新聚焦剪力墙智能设计模块，推出新的生成式智能设计算法，同时考虑到一些老用户的使用习惯，这次升级是以实验室版本形式发布。新算法针对性地强化了AI设计过程中的结构地震变形约束条件，不仅显著提升了设计结果的“地震变形指标”通过率，且材料用量也有一定程度的降低！
1
v0.4.2版本增加实验室版本新算法
v0.4.2版本增加实验室版本新算法
由于本次AI-structure Copilot v0.4.2版本算法变化较大，为了不影响老用户的使用习惯，我们将新算法以实验室版本的形式发布。
用户其他操作与此前版本都完全一样。用户在完成图纸前处理后，点击“剪力墙-梁智能设计”功能按键（图1a），软件将弹出图1b所示对话框，用户可根据需要选择“正式版”或“实验室版”的生成式算法开展智能设计。其中，实验室版算法将分为4步开展智能设计，总耗时约2-6分钟（图1c）。
（a）“剪力墙-梁智能设计”功能按键

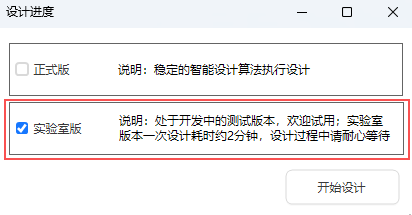

（b）正式版和实验室版算法选择

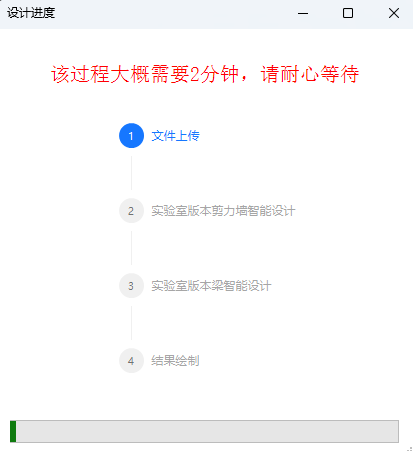

（c）实验室版智能设计进度
图1 v0.4.2版本增加“实验室版”算法
2
实验室版算法的设计效果
实验室版算法的设计效果
继3500+实际工程验证后，随着用户使用量的增加，更复杂的设计挑战也越来越多。因此，我们也在不断改进我们的智能设计算法，不断提升智能设计的合规性。
图2为某实际工程案例，其中图2a为正式版算法A的智能设计结果，图2b为实验室版算法的智能设计结果，图2c为地震力作用下两者层间位移角的对比情况。可以看出，实验室版算法在更多的考虑了力学约束后，增加了局部X向的剪力墙布置，使得设计结果符合规范限值要求。
（a）正式版算法A的智能设计结果
（b）实验室版算法的智能设计结果

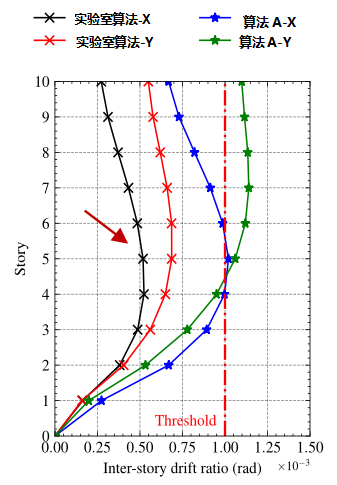

（c）层间位移角对比
图2 实验室版本算法与算法A的比较
因此，对地震变形指标合规率需求较高的用户，可以采用“实验室版”新算法（AI设计用时会多一点）；仅需AI先给出初步结构布置结果，对设计稳定性与多方案要求较高的用户，可继续采用“正式版”算法。
3
结语
结语
AI-structure Copilot的每一次升级，都是课题组在“AI+工程设计”领域的又一次探索。欢迎大家试用我们的实验室版功能，并多多提供意见和建议。
后续，我们还将不断完善相关产品功能。欢迎大家持续关注我们的工作，多多支持！
温馨提示：为更好使用AI设计工具，请仔细阅读使用说明书(https://ai-structure.com)。

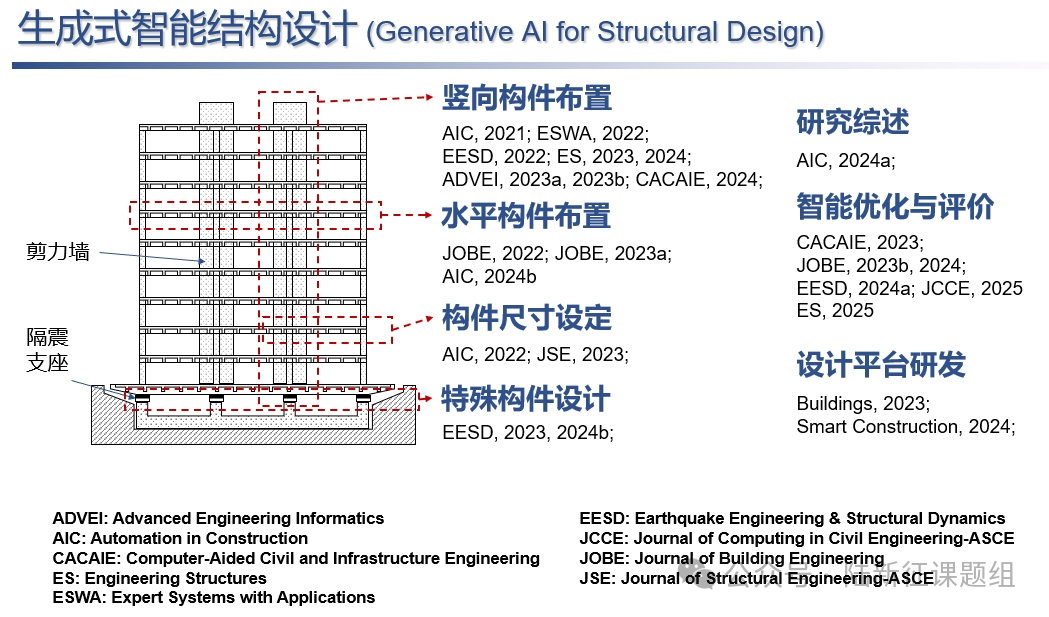

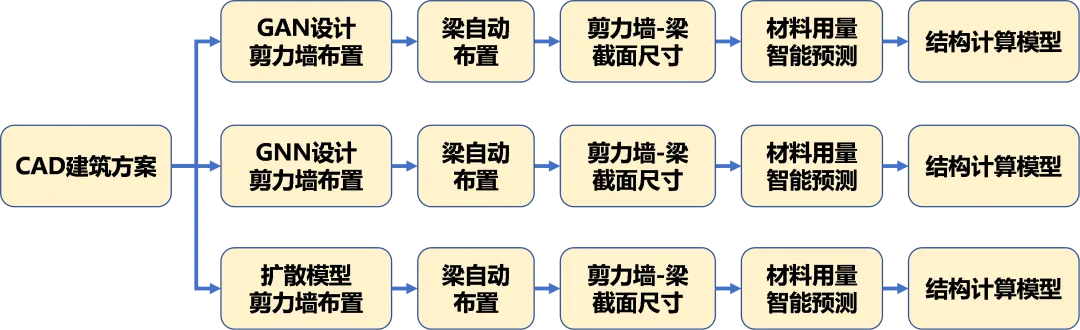

相关论文
Liao WJ, Lu XZ, Huang YL, Zheng Z, Lin YQ, Automated structural design of shear wall residential buildings using generative adversarial networks, Automation in Construction, 2021, 132: 103931. DOI: 10.1016/j.autcon.2021.103931.
Lu XZ, Liao WJ, Zhang Y, Huang YL, Intelligent structural design of shear wall residence using physics-enhanced generative adversarial networks, Earthquake Engineering & Structural Dynamics, 2022, 51(7): 1657-1676. DOI: 10.1002/eqe.3632.
Zhao PJ, Liao WJ, Xue HJ, Lu XZ, Intelligent design method for beam and slab of shear wall structure based on deep learning, Journal of Building Engineering, 2022, 57: 104838. DOI: 10.1016/j.jobe.2022.104838.
Liao WJ, Huang YL, Zheng Z, Lu XZ, Intelligent generative structural design method for shear-wall building based on “fused-text-image-to-image” generative adversarial networks, Expert Systems with Applications, 2022, 118530, DOI: 10.1016/j.eswa.2022.118530.
Fei YF, Liao WJ, Zhang S, Yin PF, Han B, Zhao PJ, Chen XY, Lu XZ, Integrated schematic design method for shear wall structures: a practical application of generative adversarial networks, Buildings, 2022, 12(9): 1295. DOI: 10.3390/buildings1209129.
Fei YF, Liao WJ, Huang YL, Lu XZ, Knowledge-enhanced generative adversarial networks for schematic design of framed tube structures, Automation in Construction, 2022, 144: 104619. DOI: 10.1016/j.autcon.2022.104619.
Zhao PJ, Liao WJ, Huang YL, Lu XZ, Intelligent design of shear wall layout based on attention-enhanced generative adversarial network, Engineering Structures, 2023, 274: 115170. DOI: 10.1016/j.engstruct.2022.115170.
Zhao PJ, Liao WJ, Huang YL, Lu XZ, Intelligent beam layout design for frame structure based on graph neural networks, Journal of Building Engineering, 2023, 63, Part A: 105499. DOI: 10.1016/j.jobe.2022.105499.
Zhao PJ, Liao WJ, Huang YL, Lu XZ, Intelligent design of shear wall layout based on graph neural networks, Advanced Engineering Informatics, 2023, 55:101886, DOI: 10.1016/j.aei.2023.101886
Liao WJ, Wang XY, Fei YF, Huang YL, Xie LL, Lu XZ, Base-isolation design of shear wall structures using physics-rule-co-guided self-supervised generative adversarial networks, Earthquake Engineering & Structural Dynamics, 2023, 52(11): 3281-3303. DOI:10.1002/eqe.3862.
Feng YT, Fei YF, Lin YQ, Liao WJ, Lu XZ, Intelligent generative design for shear wall cross-sectional size using rule-embedded generative adversarial network, Journal of Structural Engineering-ASCE, 2023, 149(11). 04023161. DOI:10.1061/JSENDH.STENG-12206.
Fei YF, Liao WJ, Lu XZ, Guan H, Knowledge-enhanced graph neural networks for construction material quantity estimation of reinforced concrete buildings, Computer-Aided Civil and Infrastructure Engineering, 2024, 39(4): 518-538. DOI: 10.1111/mice.13094.
Zhao PJ, Fei YF, Huang YL, Feng YT, Liao WJ, Lu XZ, Design-condition-informed shear wall layout design based on graph neural networks, Advanced Engineering Informatics, 2023, 58: 102190. DOI: 10.1016/j.aei.2023.102190.
Fei YF, Liao WJ, Lu XZ, Taciroglu E, Guan H, Semi-supervised learning method incorporating structural optimization for shear-wall structure design using s mall and long-tailed datasets, Journal of Building Engineering, 2023, 79: 107873. DOI：10.1016/j.jobe.2023.107873
Liao WJ, Lu XZ, Fei YF, Gu Y, Huang YL, Generative AI design for building structures, Automation in Construction, 2024, 157: 105187. DOI: 10.1016/j.autcon.2023.105187
Zhao PJ, Liao WJ, Huang YL, Lu XZ, Beam layout design of shear wall structures based on graph neural networks, Automation in Construction, 2024, 158: 105223. DOI: 10.1016/j.autcon.2023.105223
Qin SZ, Liao WJ, Huang SN, Hu KG, Tan Z, Gao Y, Lu XZ, AIstructure-Copilot: assistant for generative AI-driven intelligent design of building structures, S mart Construction, 2024, DOI: 10.55092/sc20240001
Gu Y, Huang YL, Liao WJ, Lu XZ, Intelligent design of shear wall layout based on diffusion models, Computer-Aided Civil and Infrastructure Engineering, 2024, 39(23):3610-3625. DOI: 10.1111/mice.13236
Fei YF, Liao WJ, Zhao PJ, Lu X*, Guan H, Hybrid surrogate model combining physics and data for seis mic drift estimation of shear-wall structures, Earthquake Engineering & Structural Dynamics, 2024, 53(10): 3093-3112. DOI: 10.1002/eqe.4151
Han J, Lu XZ, Gu Y, Cai Q, Xue HJ, Liao WJ, Optimized data representation and understanding method for the intelligent design of shear wall structures, Engineering Structures, 2024, 315: 118500. DOI: 10.1016/j.engstruct.2024.118500
Qin SZ, Guan H, Liao WJ, Gu Y, Zheng Z, Xue HJ, Lu XZ, Intelligent design and optimization system for shear wall structures based on large language models and generative artificial intelligence, Journal of Building Engineering, 2024, 95: 109996. DOI: 10.1016/j.jobe.2024.109996
Wang ZH, Yue Y, Chen Y, Liao WJ, Li CS, Hu KG, Tan Z, Lu XZ. Expert experience-embedded evaluation and decision-making method for intelligent design of shear wall structures. Journal of Computing in Civil Engineering-ASCE, 2025, 39(1). DOI: 10.1061/JCCEE5.CPENG-6076
Tan Z, Qin SZ, Hu KG, Liao WJ, Gao Y, Lu XZ, Intelligent generation and optimization method for the retrofit design of RC frame structures using buckling-restrained braces, Earthquake Engineering & Structural Dynamics, 2025, 54(2): 530-547. DOI: 10.1002/eqe.4268
Yu Y, Chen Y, Liao WJ, Wang ZH, Zhang SL, Kang YJ, Lu XZ, Intelligent generation and interpretability an alysis of shear wall structure design by learning from multidimensional to high-dimensional features, Engineering Structures, 2025, 325: 119472. DOI: 10.1016/j.engstruct.2024.119472
Qin SZ, Liao WJ, Huang YL, Zhang Shulu, Gu Y, Han J, Lu XZ, Intelligent design for component size generation in reinforced concrete frame structures using heterogeneous graph neural networks, Automation in Construction, 2025, 171: 105967.
Xia JK, Liao WJ, Han B, Zhang SL, Lu XZ, Intelligent co-design of shear wall and beam layouts using a graph neural network, Automation in Construction, 2025, 172: 106024.
Qin SZ, Liao WJ, Tan Z, Hu KG, Gao Y, Lu XZ, Comparative a nalysis of intelligent retrofit design methods of RC frame structures using buckling-restrained braces. Bulletin of Earthquake Engineering, 2025, DOI: 10.1007/s10518-025-02164-3
Liao WJ, Zhang ZL, Liu B, Lu XZ, Liu DF, Liu Q, Duan ZJ, Liu C, Intelligent zoning design of concrete-faced rockfill dams using image-parameter fusion enhanced generative adversarial networks, Engineering Structures, 2025, 339: 120662. DOI: 10.1016/j.engstruct.2025.120662
Qin SZ, Fei YF, Liao WJ, Lu XZ*, Leveraging data-driven artificial intelligence in optimization design for building structures: A review, Engineering Structures, 2025, 341: 120810. DOI: 10.1016/j.engstruct.2025.120810
Fei YF, Lu XZ, Liao WJ, Guan H, Data enhancement for generative AI design of shear wall structures incorporating structural optimization and diffusion models, Advances in Structural Engineering, 2025, DOI: 10.1177/13694332251353614
