CHEMKIN基础介绍

3月前浏览452

主要内容


o CHEMKIN介绍

o CHEMKIN用户界面

o CHEMKIN化学设置

o CHEMKIN模型

o CHEMKIN后处理

o CHEMKIN算例


围绕化学模拟提供 产品和服务


CHEMKIN应用于工程问题


o 设计方向

n 改进反应器尺寸的影响

n 工业过程的参数运行范围

n 确定过程的可替代性

n 预测反应过程时间尺度上的可控制性

o 反应器优化和改进

n 工况运行条件变化的影响

n 过程参数扰动的敏感性

n 反应器的生产能力评估

o 厂商

n 排放

n 过程变化对下游的影响

o 模型假设和验证

n 化学机理的发展与简化

n 实验结果的预测


CHEMKIN有效的求解问题


o 快速模型的发展

n 分级近似

n 能够把不同的理想反应器模型连接在一起

n 不需要建立网格

o 有效准确的求解技术

n 良好的刚性方程组求解方法

n 高效的体系结构

n 继续计算和重新开始计算的功能

o 计算结果容易分析和解释

n 内置的数据可视化

n 数据管理的敏感性分析


CHEMKIN 4.x


o基于java的操作界面。

o操作界面不再是基于计算模块,而是反应器模型

o全新的后处理功能

o项目图形化

o全新的参数研究功能

o颗粒追踪模块



主要内容



o CHEMKIN介绍

o CHEMKIN用户界面

o CHEMKIN化学设置

o CHEMKIN模型

o CHEMKIN后处理

o CHEMKIN算例


探究用户界面

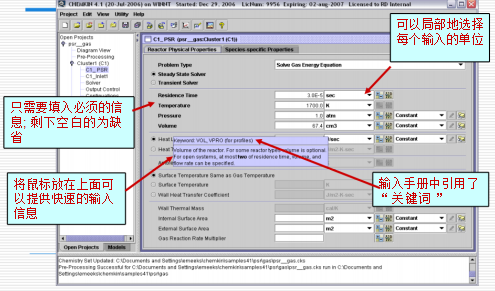

o更改用户参数选择

n 检查 “培训 ” 和“例子 ” 文件的位置

n 设置“记事本 ” 作为 缺省编辑器

n 设置IE作为 HTML 阅读器

n 测试 Adobe Acrobat Reader 作为 PDF 阅读器

o打开 开始手册

o 为“线性沉积率 ”设置缺省单位为microns/min

介绍图形界面 …


研究图像选项

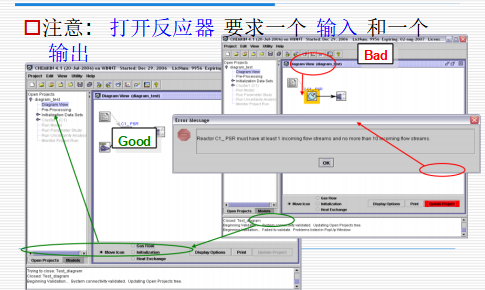

1. 创建一个新方案

2. 创建一个PSRs与一个或多个输入的网

3. 在末端处添加一个管流反应

4. 更新方案

5. 试验在参数项间连线

6. 在 PSRs间增加热流并再次更新

7. 打开前处理面板

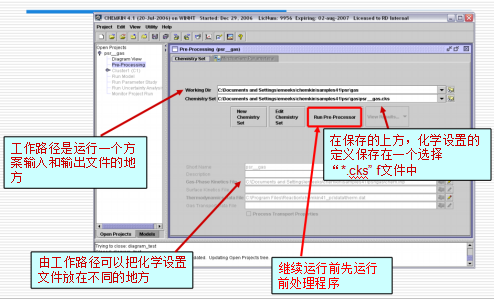

8. 为化学设置选择 grimech30.cks 文件 (复 制系统数据的化学设置

前处理程序的化学设置


反应输入面板

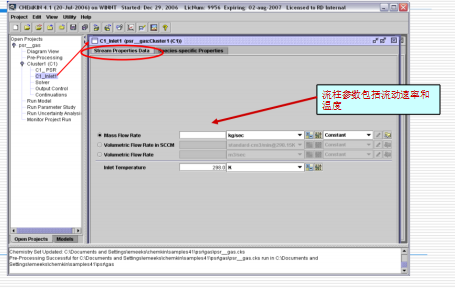

输入面板包括流动参数和反应物成分输入

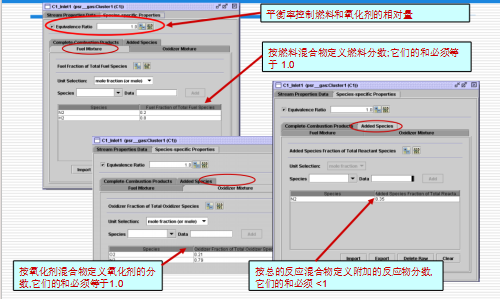

用燃料/氧化剂平衡率可以输入反应物的成分

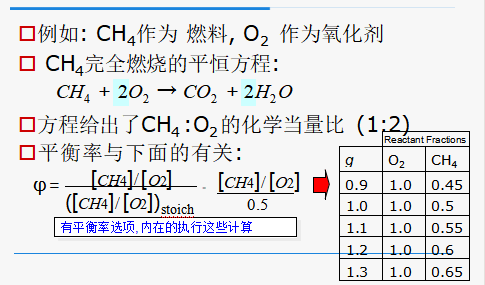

平衡率定义


详细内容请见附件
