一个考虑腐蚀的相场损伤模型源代码

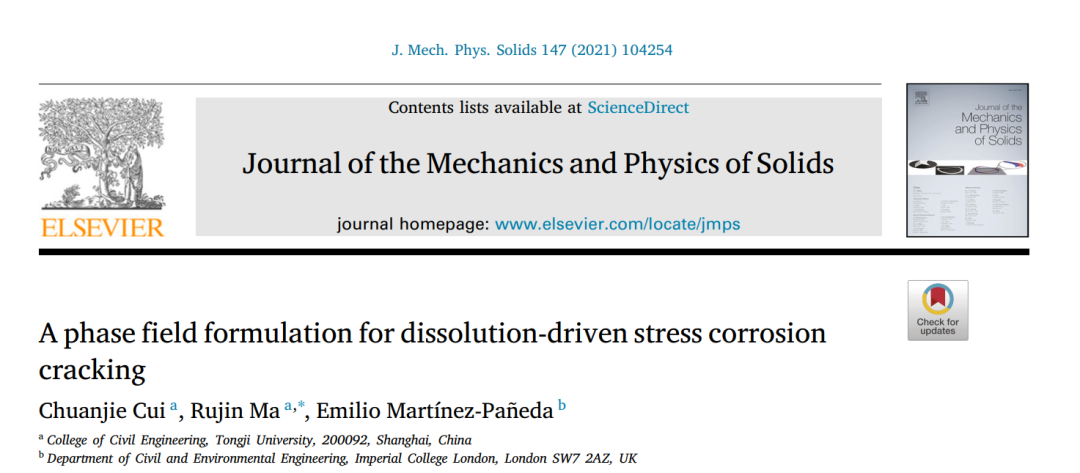

原始文献：《A phase field formulation for dissolution-driven stress corrosion cracking》

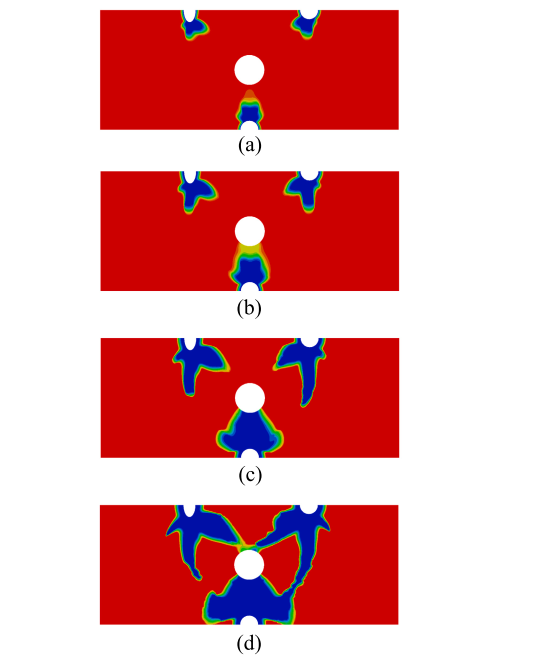

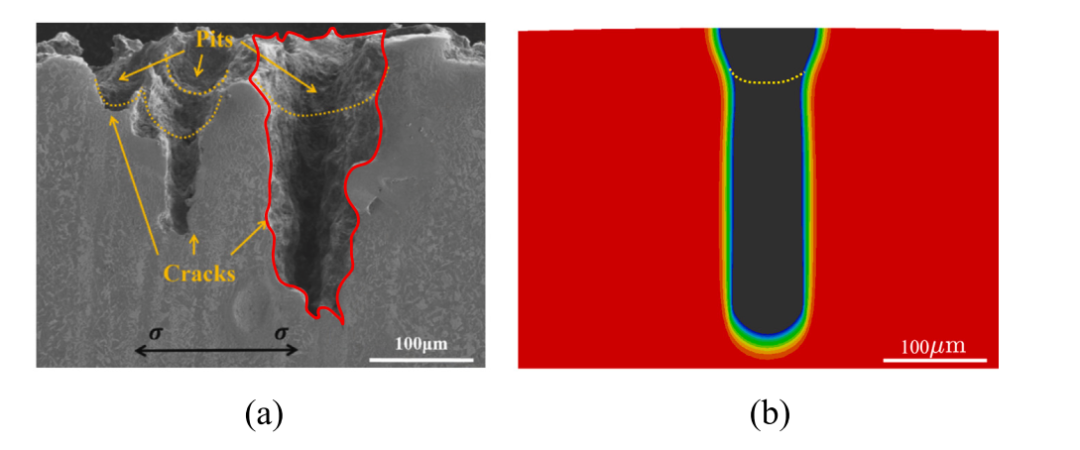

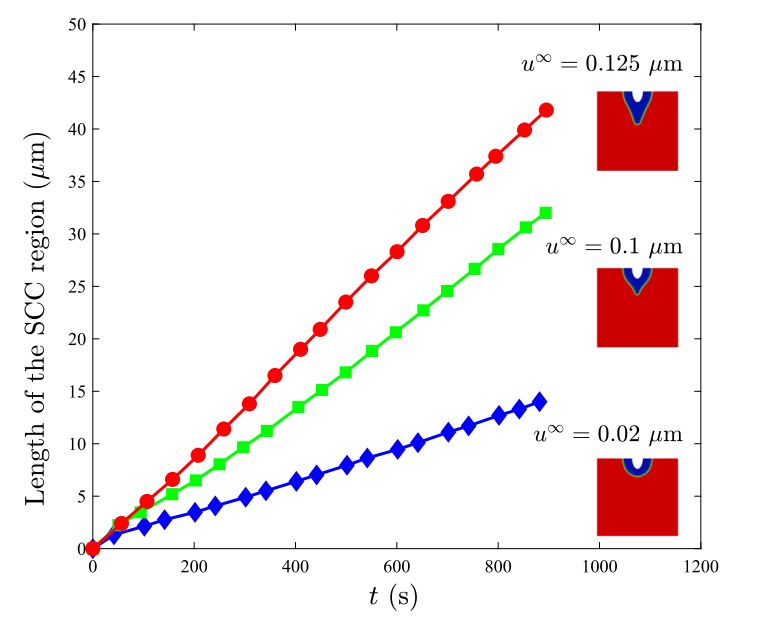

来源于该文章，对腐蚀相关损伤建模的可以详细阅读原文，理解整个程序，作者模拟效果如下：
module kvisual
implicit none
real*8 UserVar(4,24,70000)
integer nelem
save
end module
!***********************************************************************
subroutine uexternaldb(lop,lrestart,time,dtime,kstep,kinc)
include 'aba_param.inc'
!implicit real(a-h o-z)
dimension time(2)
if (lop.eq.0) then !start of an alysis
call mutexinit(1)
endif
return
end
!***********************************************************************
subroutine uel(rhs,amatrx,svars,energy,ndofel,nrhs,nsvars,
1 props,nprops,coords,mcrd,nnode,u,du,v,a,jtype,time,dtime,
2 kstep,kinc,jelem,params,ndload,jdltyp,adlmag,predef,npredf,
3 lflags,mlvarx,ddlmag,mdload,pnewdt,jprops,njpro,period)
use kvisual
include 'aba_param.inc'
!implicit real(a-h o-z)
dimension rhs(mlvarx,*),amatrx(ndofel,ndofel),props(*),svars(*),
1 energy(*),coords(mcrd,nnode),u(ndofel),du(mlvarx,*),v(ndofel),
2 a(ndofel),time(2),params(*),jdltyp(mdload,*),adlmag(mdload,*),
3 ddlmag(mdload,*),predef(2,npredf,nnode),lflags(*),jprops(*)
parameter(ndim=2,ntens=4,ninpt=4,nsvint=24,ndof=4)
dimension wght(ninpt),dN(nnode,1),dNdz(ndim,nnode),stress(ntens),
1 dNdx(ndim,nnode),b(ntens,nnode*ndim),ddsdde(ntens,ntens),
2 stran(ntens),xm(nnode,nnode),BB(nnode,nnode),dstran(ntens),
3 statevLocal(nsvint),eelas(ntens)
! initialising
do k1=1,ndofel
rhs(k1,1)=0.d0
end do
amatrx=0.d0
wght=1.d0
! find number of elements
if (dtime.eq.0.d0) then
if (jelem.eq.1) then
nelem=jelem
else
CALL MutexLock(1)
if (jelem.gt.nelem) nelem=jelem
CALL MutexUnlock(1)
endif
endif

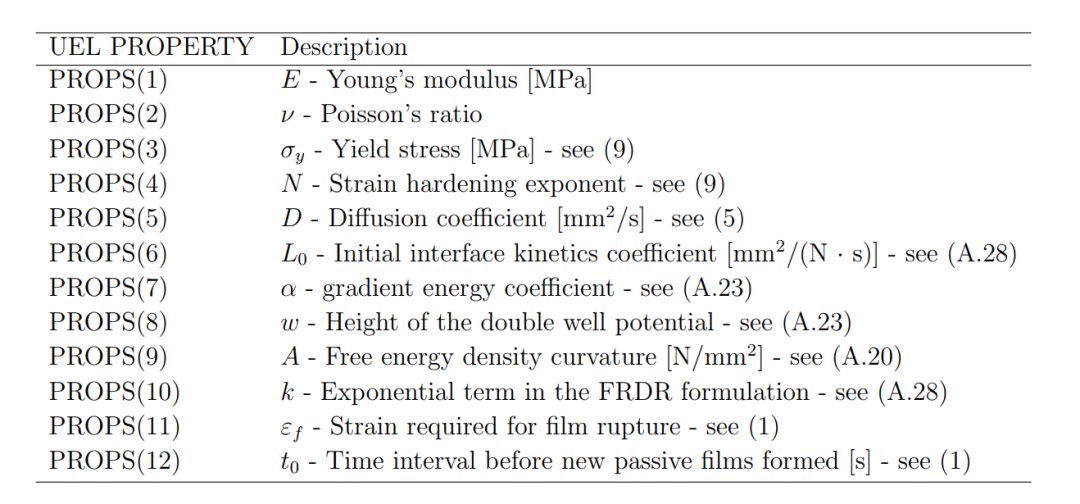

! reading parameters
D=props(5)
xL0=props(6)
a_phi=props(7)
wh=props(8)
AA=props(9)
xk=props(10)
ef=props(11)
t0=props(12)
cse=1.d0 ! Normalized equilibrium concentration of solid
cle=0.036d0 ! Normalized equilibrium concentration of liquid
xkap=1.d-7 ! well-conditioning parameter
T=300.d0 ! Temperature (K)
R=8314.d0 ! Gas constant
do kintk=1,ninpt
! evaluate shape functions and derivatives
call kshapefcn(kintk,ninpt,nnode,ndim,dN,dNdz)
call kjacobian(jelem,ndim,nnode,coords,dNdz,djac,dNdx,mcrd)
call kbmatrix(dNdx,ntens,nnode,ndim,b)
dvol=wght(kintk)*djac
! compmute phase field, concentration and strains from nodal values
phi=0.d0
dphi=0.d0
cL=0.d0
do inod=1,nnode
phi=phi+dN(inod,1)*u(ndim*nnode+inod)
dphi=dphi+dN(inod,1)*du(ndim*nnode+inod,1)
cL=cL+dN(inod,1)*u((ndim+1)*nnode+inod)
end do
dstran=matmul(b,du(1:ndim*nnode,1))
! defining suitable functions
hphi=-2.d0*phi**3+3.d0*phi**2
dhphi=-6.d0*phi**2+6.d0*phi
ddhphi=-12.d0*phi+6.d0
gphi=(1.d0-phi)*(1.d0-phi)*phi**2
dgphi=2.d0*phi+4.d0*phi**3-6.d0*phi**2
ddgphi=2.d0+12.d0*phi**2-12.d0*phi
! recover and assign state variables
call kstatevar(kintk,nsvint,svars,statevLocal,1)
stress=statevLocal(1:ntens)
stran(1:ntens)=statevLocal((ntens+1):(2*ntens))
eelas(1:ntens)=statevLocal((2*ntens+1):3*ntens)
ti=statevLocal(4*ntens+7)
ei=statevLocal(4*ntens+8)
! call umat to obtain stresses and constitutive matrix
call kumat(props,ddsdde,stress,dstran,ntens,statevLocal,eelas,
1 spd,hphi,phi,xkap,Sh0,eqplas,deqpl)
! enhance the value of L
Sh=(hphi+xkap)*Sh0
pls=statevLocal(4*ntens+1)
xkm=dexp(Sh*7.12d3/(R*T))*(1.d0+pls/(props(3)/props(1)))
if (time(2).lt.3.01d0) then
ti=0.d0
ei=0.d0
else
ei=ei+statevLocal(4*ntens+5)
ti=ti+dtime
endif
if (ei.gt.ef) then
ti=0.d0
ei=0.d0
endif
if (ti.lt.t0) then
xL=xL0*xkm
else
xL=xL0*xkm*dexp(-xk*(ti-t0))
endif

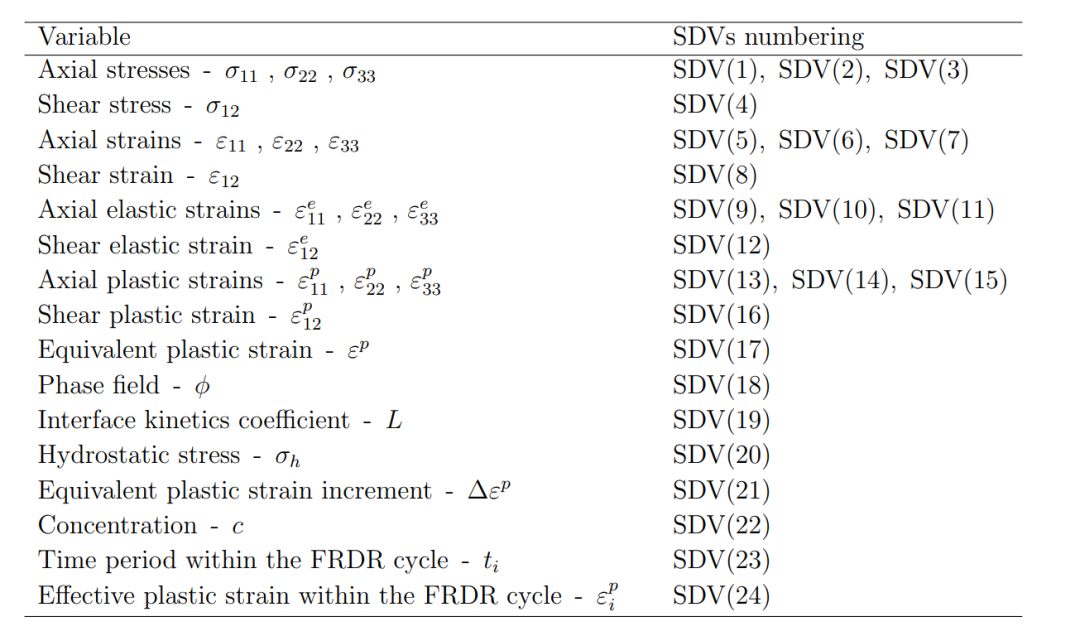

! store state variables
statevLocal(1:ntens)=stress(1:ntens)
statevLocal((ntens+1):(2*ntens))=statevLocal((ntens+1):(2*ntens))
1 +dstran(1:ntens)
statevLocal(4*ntens+2)=phi
statevLocal(4*ntens+3)=xL
statevLocal(4*ntens+4)=Sh
statevLocal(4*ntens+6)=cL
statevLocal(4*ntens+7)=ti
statevLocal(4*ntens+8)=ei
call kstatevar(kintk,nsvint,svars,statevLocal,0)
! form and assemble stiffness matrix and internal force vector
amatrx(1:16,1:16)=amatrx(1:16,1:16)+dvol*
2 ((hphi+xkap)*matmul(matmul(transpose(b),ddsdde),b))
rhs(1:16,1)=rhs(1:16,1)-
1 dvol*(matmul(transpose(b),stress)*(hphi+xkap))
fc=AA*((cL-hphi*(cse-cle)-cle)**2)+wh*gphi
dfc=-2.d0*AA*(cL-hphi*(cse-cle)-cle)*(cse-cle)*dhphi+wh*dgphi
ddfc=wh*ddgphi-2.d0*AA*(cse-cle)*
1 (ddhphi*(cL-hphi*(cse-cle)-cle)-dhphi*dhphi*(cse-cle))
BB=matmul(transpose(dNdx),dNdx)
xm=matmul(dN,transpose(dN))
amatrx(17:24,17:24)=amatrx(17:24,17:24)+
1 +dvol*(xm/dtime+xL*xm*ddfc+xL*a_phi*BB)
rhs(17:24,1)=rhs(17:24,1)-dvol*
1 (matmul(xm,du(17:24,1))/dtime+xL*dN(:,1)*dfc
2 +xL*a_phi*matmul(transpose(dNdx),matmul(dNdx,u(17:24))))
ww=(cse-cle)*dhphi
amatrx(25:32,25:32)=amatrx(25:32,25:32)+dvol*(xm/dtime+D*BB)
rhs(25:32,1)=rhs(25:32,1)-dvol*(
1 matmul(xm,du(25:32,1))/dtime+D*(matmul(transpose(dNdx),
2 matmul(dNdx,u(25:32)))
3 -ww*matmul(transpose(dNdx),matmul(dNdx,u(17:24)))))
! output
UserVar(kintk,1:ntens,jelem)=stress(1:ntens)*(hphi+xkap)
UserVar(kintk,(ntens+1):(4*ntens+8),jelem)=
1 statevLocal((ntens+1):(4*ntens+8))
end do ! end loop on material integration points
RETURN
END
!***********************************************************************
subroutine kshapefcn(kintk,ninpt,nnode,ndim,dN,dNdz)
c
include 'aba_param.inc'
c
parameter (gaussCoord=0.577350269d0)
dimension dN(nnode,1),dNdz(ndim,*),coord24(2,4)
data coord24 /-1.d0, -1.d0,
2 1.d0, -1.d0,
3 -1.d0, 1.d0,
4 1.d0, 1.d0/
! determine (g,h)
g=coord24(1,kintk)*gaussCoord
h=coord24(2,kintk)*gaussCoord
! shape functions
dN(1,1)=-0.25d0*(1.d0-g)*(1.d0-h)*(1.d0+g+h)
dN(2,1)=0.25d0*(1.d0+g)*(1.d0-h)*(g-h-1.d0)
dN(3,1)=0.25d0*(1.d0+g)*(1.d0+h)*(g+h-1.d0)
dN(4,1)=0.25d0*(1.d0-g)*(1.d0+h)*(h-g-1.d0)
dN(5,1)=0.5d0*(1.d0-g*g)*(1.d0-h)
dN(6,1)=0.5d0*(1.d0+g)*(1.d0-h*h)
dN(7,1)=0.5d0*(1.d0-g*g)*(1.d0+h)
dN(8,1)=0.5d0*(1.d0-g)*(1.d0-h*h)
! derivative d(Ni)/d(g)
dNdz(1,1)=0.25d0*(1.d0-h)*(2.d0*g+h)
dNdz(1,2)=0.25d0*(1.d0-h)*(2.d0*g-h)
dNdz(1,3)=0.25d0*(1.d0+h)*(2.d0*g+h)
dNdz(1,4)=0.25d0*(1.d0+h)*(2.d0*g-h)
dNdz(1,5)=-g*(1.d0-h)
dNdz(1,6)=0.5d0*(1.d0-h*h)
dNdz(1,7)=-g*(1.d0+h)
dNdz(1,8)=-0.5d0*(1.d0-h*h)
! derivative d(Ni)/d(h)
dNdz(2,1)=0.25d0*(1.d0-g)*(g+2.d0*h)
dNdz(2,2)=0.25d0*(1.d0+g)*(2.d0*h-g)
dNdz(2,3)=0.25d0*(1.d0+g)*(2.d0*h+g)
dNdz(2,4)=0.25d0*(1.d0-g)*(2.d0*h-g)
dNdz(2,5)=-0.5d0*(1.d0-g*g)
dNdz(2,6)=-(1.d0+g)*h
dNdz(2,7)=0.5d0*(1.d0-g*g)
dNdz(2,8)=-(1.d0-g)*h
return
end
!***********************************************************************
subroutine kjacobian(jelem,ndim,nnode,coords,dNdz,djac,dNdx,mcrd)
! Notation: djac - Jac determinant; xjaci - inverse of Jac matrix
! dNdx - shape functions derivatives w.r.t. global coordinates
include 'aba_param.inc'
dimension xjac(ndim,ndim),xjaci(ndim,ndim),coords(mcrd,nnode),
1 dNdz(ndim,nnode),dNdx(ndim,nnode)
xjac=0.d0
do inod=1,nnode
do idim=1,ndim
do jdim=1,ndim
xjac(jdim,idim)=xjac(jdim,idim)+
1 dNdz(jdim,inod)*coords(idim,inod)
end do
end do
end do
djac=xjac(1,1)*xjac(2,2)-xjac(1,2)*xjac(2,1)
if (djac.gt.0.d0) then ! jacobian is positive - o.k.
xjaci(1,1)=xjac(2,2)/djac
xjaci(2,2)=xjac(1,1)/djac
xjaci(1,2)=-xjac(1,2)/djac
xjaci(2,1)=-xjac(2,1)/djac
else ! negative or zero jacobian
write(7,*)'WARNING: element',jelem,'has neg. Jacobian'
endif
dNdx=matmul(xjaci,dNdz)
return
end
!***********************************************************************
subroutine kbmatrix(dNdx,ntens,nnode,ndim,b)
! Notation, strain tensor: e11, e22, e33, e12, e13, e23
include 'aba_param.inc'
dimension dNdx(ndim,nnode),b(ntens,nnode*ndim)
b=0.d0
do inod=1,nnode
b(1,ndim*inod-ndim+1)=dNdx(1,inod)
b(2,ndim*inod-ndim+2)=dNdx(2,inod)
b(4,ndim*inod-ndim+1)=dNdx(2,inod)
b(4,ndim*inod-ndim+2)=dNdx(1,inod)
end do
return
end
c*****************************************************************
subroutine kstatevar(npt,nsvint,statev,statev_ip,icopy)
c
c Transfer data to/from element-level state variable array from/to
c material-point level state variable array.
c
include 'aba_param.inc'
dimension statev(*),statev_ip(*)
isvinc=(npt-1)*nsvint ! integration point increment
if (icopy.eq.1) then ! Prepare arrays for entry into umat
do i=1,nsvint
statev_ip(i)=statev(i+isvinc)
enddo
else ! Update element state variables upon return from umat
do i=1,nsvint
statev(i+isvinc)=statev_ip(i)
enddo
end if
return
end
c*****************************************************************
subroutine kumat(props,ddsdde,stress,dstran,ntens,statev,eelas,
1 spd,hphi,phi,xkap,Sh,eqplas,deqpl)
c
c Subroutine with the material model
c
include 'aba_param.inc' !implicit real(a-h o-z)
dimension props(*),ddsdde(ntens,ntens),stress(ntens),statev(*),
+ dstran(ntens),eelas(ntens),eplas(ntens),flow(ntens),olds(ntens),
+ oldpl(ntens)
parameter(toler=1.d-6,newton=20)
eelas(1:ntens)=statev((2*ntens+1):3*ntens)
eplas(1:ntens)=statev((3*ntens+1):4*ntens)
eqplas=statev(1+4*ntens)
deqpl=statev(5+4*ntens)
olds=stress
oldpl=eplas
! Initialization
ddsdde=0.d0
E=props(1) ! Young's modulus
xnu=props(2) ! Poisson's ratio
Sy=props(3) ! Yield stress
xn=props(4) ! Strain hardening exponent
! Build elastic stiffness matrix
eg=E/(1.d0+xnu)/2.d0
elam=(E/(1.d0-2.d0*xnu)-2.d0*eg)/3.d0
do i=1,3
do j=1,3
ddsdde(j,i)=elam
end do
ddsdde(i,i)=2.d0*eg+elam
end do
do i=4,ntens
ddsdde(i,i)=eg
end do
! Calculate predictor stress and elastic strain
stress=stress+matmul(ddsdde,dstran)
eelas=eelas+dstran
! Calculate equivalent von Mises stress
Smises=(stress(1)-stress(2))**2+(stress(2)-stress(3))**2
1 +(stress(3)-stress(1))**2
do i=4,ntens
Smises=Smises+6.d0*stress(i)**2
end do
Smises=sqrt(Smises/2.d0)
! Get yield stress from the specified Ehardening curve
Sf=Sy*(1.d0+E*eqplas/Sy)**xn
! Determine if active yielding
if (Smises.gt.(1.d0+toler)*Sf) then
! Calculate the flow direction
Sh=(stress(1)+stress(2)+stress(3))/3.d0
flow(1:3)=(stress(1:3)-Sh)/Smises
flow(4:ntens)=stress(4:ntens)/Smises
! Solve for Smises and deqpl using Newton's method
deqpl=0.d0
Et=E*xn*(1.d0+E*eqplas/Sy)**(xn-1)
do kewton=1,newton
rhs=Smises-(3.d0*eg)*deqpl-Sf
deqpl=deqpl+rhs/((3.d0*eg)+Et)
! if(deqpl.lt.0.d0) deqpl=-deqpl
Sf=Sy*(1.d0+E*(eqplas+deqpl)/Sy)**xn
Et=E*xn*(1.d0+E*(eqplas+deqpl)/Sy)**(xn-1)
if(abs(rhs).lt.toler*Sy) exit
end do
if (kewton.eq.newton) write(7,*)'WARNING: plasticity loop failed'
! update stresses and strains
stress(1:3)=flow(1:3)*Sf+Sh
eplas(1:3)=eplas(1:3)+3.d0/2.d0*flow(1:3)*deqpl
eelas(1:3)=eelas(1:3)-3.d0/2.d0*flow(1:3)*deqpl
stress(4:ntens)=flow(4:ntens)*Sf
eplas(4:ntens)=eplas(4:ntens)+3.d0*flow(4:ntens)*deqpl
eelas(4:ntens)=eelas(4:ntens)-3.d0*flow(4:ntens)*deqpl
eqplas=eqplas+deqpl
! Calculate the plastic strain energy density
do i=1,ntens
spd=spd+(stress(i)+olds(i))*(eplas(i)-oldpl(i))/2.d0
end do
! Formulate the jacobian (material tangent)
effg=eg*Sf/Smises
efflam=(E/(1.d0-2.d0*xnu)-2.d0*effg)/3.d0
effhrd=3.d0*eg*Et/(3.d0*eg+Et)-3.d0*effg
do i=1,3
do j=1,3
ddsdde(j,i)=efflam
enddo
ddsdde(i,i)=2.d0*effg+efflam
end do
do i=4,ntens
ddsdde(i,i)=effg
end do
do i=1,ntens
do j=1,ntens
ddsdde(j,i)=ddsdde(j,i)+effhrd*flow(j)*flow(i)
end do
end do
endif
! Store strains in state variable array
Sh=(stress(1)+stress(2)+stress(3))/3.d0
statev((2*ntens+1):3*ntens)=eelas
statev((3*ntens+1):4*ntens)=eplas
statev(4*ntens+1)=eqplas
statev(4*ntens+5)=deqpl
return
end
c*****************************************************************
subroutine umat(stress,statev,ddsdde,sse,spd,scd,rpl,ddsddt,
1 drplde,drpldt,stran,dstran,time,dtime,temp2,dtemp,predef,dpred,
2 cmname,ndi,nshr,ntens,nstatv,props,nprops,coords,drot,pnewdt,
3 celent,dfgrd0,dfgrd1,noel,npt,layer,kspt,jstep,kinc)
use kvisual
include 'aba_param.inc' !implicit real(a-h o-z)
character*8 cmname
dimension stress(ntens),statev(nstatv),ddsdde(ntens,ntens),
1 ddsddt(ntens),drplde(ntens),stran(ntens),dstran(ntens),
2 time(2),predef(1),dpred(1),props(nprops),coords(3),drot(3,3),
3 dfgrd0(3,3),dfgrd1(3,3),jstep(4)
ddsdde=0.0d0
noffset=noel-nelem
statev(1:nstatv)=UserVar(npt,1:nstatv,noffset)
return
end
