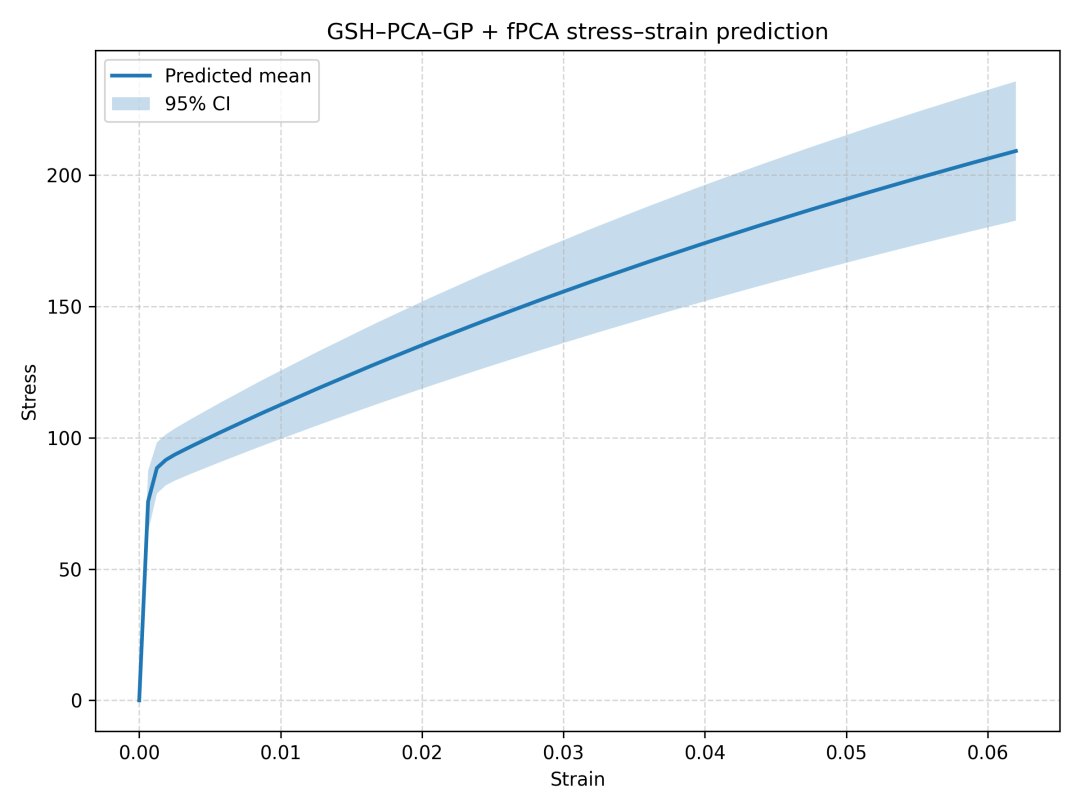

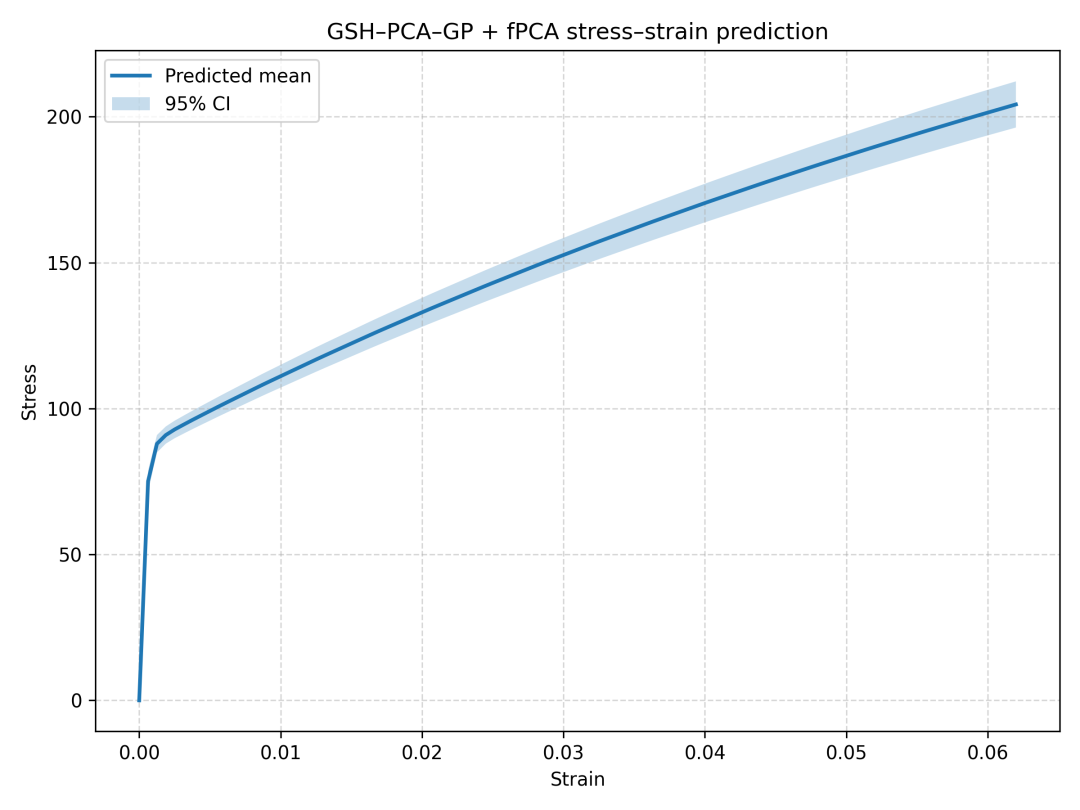

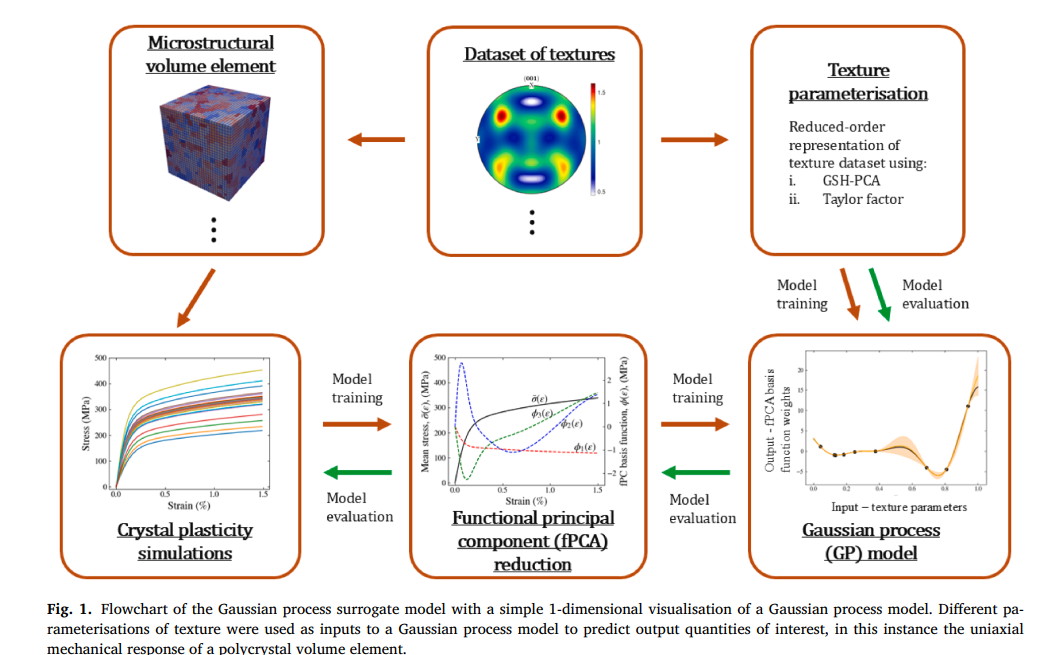

!=====================================================================! HILL48 PLASTICITY UMAT WITH VOCE ISOTROPIC HARDENING! IMPLEMENTATION: GENERALIZED RADIAL-RETURN IN EIGENSPACE!===============================================================================!! AUTHOR: ! Mohammad Hasaninia! Computational Advanced Manufacturing and Materials Laboratory (CAMML)! Department of Mechanical Engineering! University of Wyoming!! REFERENCE:! Versino, D. and Bennett, K.C. (2018). Generalized radial-return mapping ! algorithm for anisotropic von Mises plasticity framed in material ! eigenspace. Int. J. Numer. Meth. Engng, 116: 202-222.! https://doi.org/10.1002/nme.5921!!-------------------------------------------------------------------------------! INPUT PROPERTIES (PROPS) DEFINITION:! PROPS(1) : Young's Modulus (E)! PROPS(2) : Poisson's Ratio (nu)! PROPS(3) : Initial Yield Stress (Sigma_Y0)! PROPS(4) : Saturation Stress (Q_inf) - Voce Parameter! PROPS(5) : Hardening Rate (b) - Voce Parameter! PROPS(6) : Hill F! PROPS(7) : Hill G! PROPS(8) : Hill H! PROPS(9) : Hill L! PROPS(10) : Hill M! PROPS(11) : Hill N!! STATE VARIABLES (STATEV) OUTPUT:! STATEV(1) : Equivalent Plastic Strain (alpha)! STATEV(2) : Current Yield Stress! STATEV(3-8) : Plastic Strain Tensor (11, 22, 33, 12, 13, 23)! STATEV(9) : Convergence Flag (0=Converged, 1=Failed)!=====================================================================SUBROUTINE UMAT(STRESS, STATEV, DDSDDE, SSE, SPD, SCD, RPL, & DDSDDT, DRPLDE, DRPLDT, STRAN, DSTRAN, TIME, DTIME, & TEMP, DTEMP, PREDEF, DPRED, CMNAME, NDI, NSHR, NTENS, & NSTATV, PROPS, NPROPS, COORDS, DROT, PNEWDT, & CELENT, DFGRD0, DFGRD1, NOEL, NPT, LAYER, KSPT, & KSTEP, KINC) IMPLICIT NONE ! Abaqus UMAT interface variables CHARACTER*80 CMNAME INTEGER NDI, NSHR, NTENS, NSTATV, NPROPS INTEGER NOEL, NPT, LAYER, KSPT, KSTEP, KINC REAL(8) STRESS(NTENS), STATEV(NSTATV), DDSDDE(NTENS,NTENS) REAL(8) SSE, SPD, SCD, RPL, DRPLDT, DTIME, TEMP, DTEMP, PNEWDT, CELENT REAL(8) STRAN(NTENS), DSTRAN(NTENS), TIME(2), PREDEF(1), DPRED(1) REAL(8) PROPS(NPROPS), COORDS(3), DROT(3,3), DFGRD0(3,3), DFGRD1(3,3) REAL(8) DDSDDT(NTENS), DRPLDE(NTENS) ! Local variables for plasticity computation REAL(8) :: alpha_tr, alpha, StressYield, s_y, s_y_D, s_y_tr, f_gamma_tr REAL(8) :: Sigma_Y0, Q_inf, b_voce REAL(8) :: MatM(6,6), MatD(6,6), MatI(6,6) REAL(8) :: MatM_copy(6,6), Mat_inv(6,6) REAL(8) :: W(6), Q(6,6), Gamma(6,6), K(6,6), dK_dDelta_gamma_matrix(6,6) REAL(8) :: s_tr(6), strain_p(6), Stress_New(6), s_tilde_tr(6) REAL(8) :: Vec(6), dev_corrected(6) REAL(8) :: E, XNUE, EBULK3, EG2, EG, ELAM REAL(8) :: HillF, HillG, HillH, HillL, HillM, HillN REAL(8) :: pressure, d_ga, omega, d_al, f_gamma_delta, delta_alpha REAL(8) :: Df_gamma_d_d_gamma, d_omega_d_d_gamma, d_sy_d_d_gamma REAL(8) :: TOLERANCE, exp_term INTEGER :: iteration, K3, K5, K6, K7, K8, INFO LOGICAL :: converged ! Extract material properties E = PROPS(1) ! Young's modulus XNUE = PROPS(2) ! Poisson's ratio Sigma_Y0 = PROPS(3) ! Initial yield stress Q_inf = PROPS(4) ! Saturation stress (Q∞) b_voce = PROPS(5) ! Voce hardening rate parameter HillF = PROPS(6) ! Hill parameter F HillG = PROPS(7) ! Hill parameter G HillH = PROPS(8) ! Hill parameter H HillL = PROPS(9) ! Hill parameter L HillM = PROPS(10) ! Hill parameter M HillN = PROPS(11) ! Hill parameter N ! Initialize state variables IF (TIME(2) < 1.0D-6) THEN alpha_tr = 0.0D0 ! Voce: σ_y0 = σ_Y0 + Q∞(1 - e^0) = σ_Y0 StressYield = Sigma_Y0 strain_p = 0.0D0 STATEV(1:9) = 0.0D0 ELSE alpha_tr = STATEV(1) StressYield = STATEV(2) strain_p(1:6) = STATEV(3:8) END IF ! Create elasticity matrix EBULK3 = E/(1.0D0-2.0D0*XNUE) EG2 = E/(1.0D0+XNUE) EG = EG2/2.0D0 ELAM = (EBULK3-EG2)/3.0D0 MatD = 0.0D0 MatD(1:3,1:3) = ELAM DO K3 = 1, 3 MatD(K3,K3) = EG2 + ELAM END DO DO K3 = 4, 6 MatD(K3, K3) = EG END DO ! Create Hill anisotropy matrix MatM = 0.0D0 MatM(1,1) = HillG + HillH MatM(2,2) = HillF + HillH MatM(3,3) = HillF + HillG MatM(1,2) = -HillH MatM(1,3) = -HillG MatM(2,3) = -HillF MatM(2,1) = MatM(1,2) MatM(3,1) = MatM(1,3) MatM(3,2) = MatM(2,3) MatM(4,4) = 2.0D0*HillN MatM(5,5) = 2.0D0*HillM MatM(6,6) = 2.0D0*HillL ! Identity matrix MatI = 0.0D0 DO K5 = 1, 6 MatI(K5,K5) = 1.0D0 END DO ! Compute trial stress (elastic predictor) Vec = MATMUL(MatD, DSTRAN) Stress_New = Vec + STRESS s_tr = Stress_New ! Extract deviatoric part pressure = (Stress_New(1)+Stress_New(2)+Stress_New(3))/3.0D0 s_tr(1:3) = s_tr(1:3) - pressure ! Eigendecomposition of anisotropy tensor MatM_copy = MatM CALL compute_eigendecomposition(MatM_copy, W, Q, Gamma, INFO) IF (INFO /= 0) THEN WRITE(*,*) 'Error in eigendecomposition, INFO = ', INFO RETURN END IF ! Transform trial stress to eigenspace s_tilde_tr = MATMUL(TRANSPOSE(Q), s_tr) ! Initialize trial values alpha_tr = STATEV(1) s_y_tr = StressYield ! Compute trial yield function f_gamma_tr = 0.5D0 * DOT_PRODUCT(s_tilde_tr, MATMUL(Gamma, s_tilde_tr)) - s_y_tr**2 ! Check yield condition IF (f_gamma_tr <= 0.0D0) THEN ! Elastic step STRESS = Stress_New d_ga = 0.0D0 alpha = alpha_tr s_y = StressYield ELSE ! Plastic step - Newton-Raphson iteration tolerance = 5.0D-4 d_ga = 0.0D0 alpha = alpha_tr converged = .FALSE. DO iteration = 1, 250 ! Build K matrix (diagonal) K = 0.0D0 DO K6 = 1, 6 K(K6,K6) = Gamma(K6,K6) / (1.0D0 + 2.0D0*EG*d_ga*Gamma(K6,K6))**2 END DO ! Compute auxiliary variable omega omega = SQRT(0.5D0 * DOT_PRODUCT(s_tilde_tr, MATMUL(K, s_tilde_tr))) IF (omega <= 1.0D-14) THEN WRITE(*,*) 'Warning: omega is too s mall' EXIT END IF ! Update alpha delta_alpha = 2.0D0 * d_ga * omega alpha = alpha_tr + delta_alpha ! ======================================================== ! VOCE HARDENING MODEL ! σ_y = σ_Y0 + Q∞(1 - exp(-b·α)) ! ======================================================== exp_term = EXP(-b_voce * alpha) s_y = Sigma_Y0 + Q_inf * (1.0D0 - exp_term) ! Derivative: ∂σ_y/∂α = Q∞·b·exp(-b·α) s_y_D = Q_inf * b_voce * exp_term ! ======================================================== ! Compute residual function f_gamma_delta = (s_y / omega) - 1.0D0 ! Check convergence IF (ABS(f_gamma_delta) <= tolerance) THEN StressYield = s_y converged = .TRUE. EXIT END IF ! Compute derivatives for Newton-Raphson dK_dDelta_gamma_matrix = 0.0D0 DO K7 = 1, 6 dK_dDelta_gamma_matrix(K7,K7) = -4.0D0*EG*Gamma(K7,K7)**2 & / (1.0D0 + 2.0D0*EG*d_ga*Gamma(K7,K7))**3 END DO d_omega_d_d_gamma = (1.0D0 / (4.0D0 * omega)) & * DOT_PRODUCT(s_tilde_tr, MATMUL(dK_dDelta_gamma_matrix, s_tilde_tr)) ! Chain rule: ∂σ_y/∂Δγ = (∂σ_y/∂α)·(∂α/∂Δγ) d_sy_d_d_gamma = 2.0D0 * s_y_D * (omega + d_ga * d_omega_d_d_gamma) ! Derivative of residual Df_gamma_d_d_gamma = (1.0D0 / omega) * d_sy_d_d_gamma & - (s_y / (omega**2)) * d_omega_d_d_gamma ! Newton-Raphson update d_ga = d_ga - f_gamma_delta / Df_gamma_d_d_gamma END DO ! Update stress after Newton loop Mat_inv = 0.0D0 DO K8 = 1, 6 Mat_inv(K8,K8) = 1.0D0 / (1.0D0 + 2.0D0*EG*d_ga*Gamma(K8,K8)) END DO dev_corrected = MATMUL(Q, MATMUL(Mat_inv, MATMUL(TRANSPOSE(Q), s_tr))) ! Assemble full Cauchy stress STRESS(1:3) = dev_corrected(1:3) + pressure STRESS(4:6) = dev_corrected(4:6) IF (.NOT. converged) THEN WRITE(*,*) 'WARNING: Newton-Raphson did not converge!' StressYield = s_y STATEV(9) = 1.0D0 END IF END IF ! Consistent tangent operator DDSDDE = MatD ! Update state variables STATEV(1) = alpha ! Equivalent plastic strain STATEV(2) = s_y ! Current yield stress strain_p = strain_p + d_ga * MATMUL(MatM, dev_corrected) STATEV(3:8) = strain_p(1:6) ! Plastic strain components RETURN CONTAINS !********************************************************************** SUBROUTINE compute_eigendecomposition(A, W, Q, Gamma, INFO) IMPLICIT NONE INTEGER, INTENT(OUT) :: INFO REAL(8), DIMENSION(6,6), INTENT(INOUT) :: A REAL(8), DIMENSION(6), INTENT(OUT) :: W REAL(8), DIMENSION(6,6), INTENT(OUT) :: Q REAL(8), DIMENSION(6,6), INTENT(OUT) :: Gamma INTEGER :: LWORK, i, j REAL(8), DIMENSION(:), ALLOCATABLE :: WORK LOGICAL :: is_symmetric ! Check symmetry is_symmetric = .TRUE. DO i = 1, 6 DO j = i + 1, 6 IF (ABS(A(i,j) - A(j,i)) > 1.0D-12) THEN is_symmetric = .FALSE. EXIT END IF END DO IF (.NOT. is_symmetric) EXIT END DO IF (.NOT. is_symmetric) THEN WRITE(*,*) "Error: Matrix not symmetric" INFO = -1 RETURN END IF ! LAPACK eigendecomposition LWORK = -1 ALLOCATE(WORK(1)) CALL DSYEV('V', 'U', 6, A, 6, W, WORK, LWORK, INFO) LWORK = INT(WORK(1)) DEALLOCATE(WORK) ALLOCATE(WORK(LWORK)) CALL DSYEV('V', 'U', 6, A, 6, W, WORK, LWORK, INFO) IF (INFO == 0) THEN Q = A Gamma = 0.0D0 DO i = 1, 6 Gamma(i,i) = W(i) END DO ELSE WRITE(*,*) "Eigendecomposition failed, INFO:", INFO Gamma = 0.0D0 END IF DEALLOCATE(WORK) END SUBROUTINE compute_eigendecompositionEND SUBROUTINE UMAT!*****************************BOTTOM*****************************原始链接：https://github.com/mhasaninia/Hill48-Voce-UMAT/tree/main来源：我的博士日记
