Fluent入门验证案例 | 非对称扩展通道的低雷诺数流动仿真

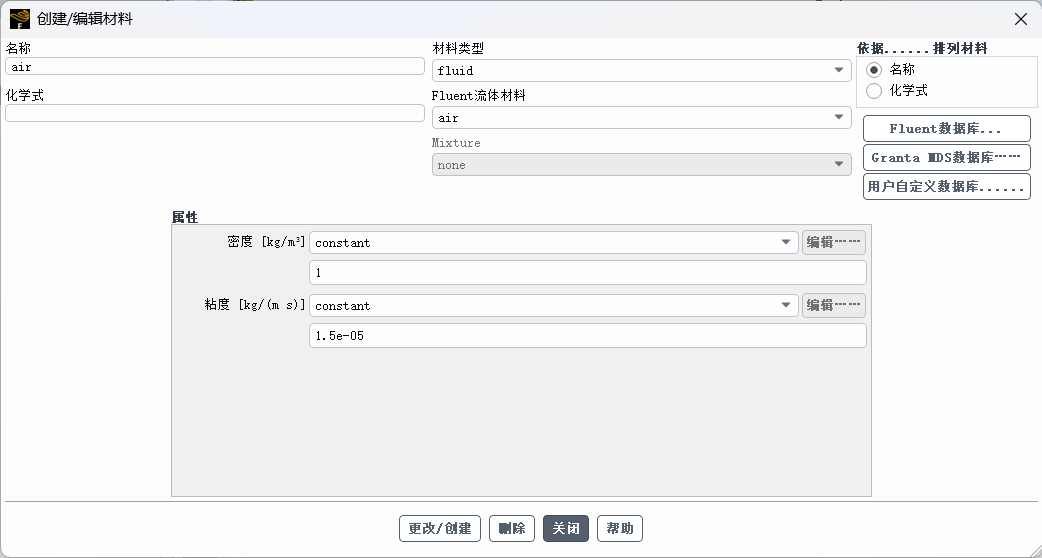

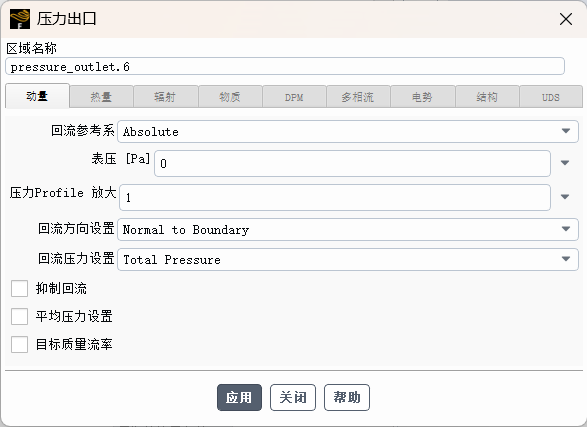

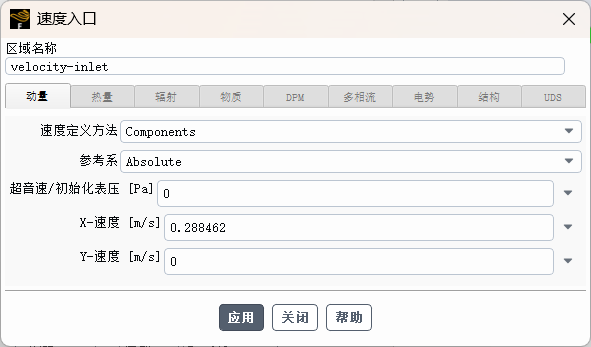

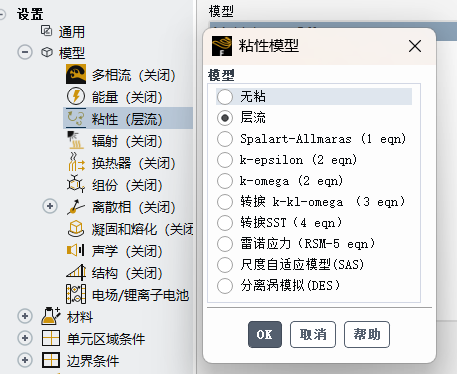

本案例为入门案例，对在轴对称扩散器中对完全发展的湍流进行建模。对气流在入口处完全发展到扩散器进行仿真计算。并对沿发散扩散器壁的压力系数比较进行监测，与文献的计算结果进行比较，实现对仿真计算准确性的验证。适合fluent初学者练手使用。1workbench设置本案例具体设置如下图：workbench设置示意图2FLUENT设置2.1General设置与网格导入首先导入网格，然后勾选为稳态计算，并选择压力基求解器。并选择轴对称选项。通用设置示意图2.2材料设置依据相关文献中的数据，对材料进行设置，密度为1，年粘度为1.64e-5，相关设置如下如所示：流体材料设置示意图2.3模型设置本案例所选用的模型为ke模型，相关设置如下图所示：湍流模型设置示意图2.4边界条件设置首先将prof文件导入，具体的prof文件内容如下图：C((inletpoint1610)(x-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00-6.000000e+00)(y0.000000e+001.673701e-023.346486e-025.017432e-026.685632e-028.350178e-021.001016e-011.166471e-011.331293e-011.495397e-011.658698e-011.821112e-011.982558e-012.142958e-012.302234e-012.460310e-012.617116e-012.772581e-012.926638e-013.079222e-013.230273e-013.379731e-013.527540e-013.673648e-013.818006e-013.960566e-014.101285e-014.240123e-014.377043e-014.512011e-014.644994e-014.775965e-014.904901e-015.031777e-015.156577e-015.279281e-015.399879e-015.518358e-015.634711e-015.748932e-015.861019e-015.970970e-016.078788e-016.184477e-016.288043e-016.389493e-016.488838e-016.586090e-016.681263e-016.774372e-016.865433e-016.954467e-017.041491e-017.126527e-017.209598e-017.290727e-017.369937e-017.447255e-017.522706e-017.596318e-017.668117e-017.738131e-017.806391e-017.872924e-017.937760e-018.000928e-018.062460e-018.122385e-018.180734e-018.237538e-018.292826e-018.346630e-018.398980e-018.449907e-018.499442e-018.547613e-018.594453e-018.639989e-018.684253e-018.727273e-018.769078e-018.809698e-018.849160e-018.887492e-018.924723e-018.960879e-018.995988e-019.030074e-019.063166e-019.095288e-019.126465e-019.156722e-019.186084e-019.214574e-019.242215e-019.269031e-019.295043e-019.320273e-019.344743e-019.368475e-019.391488e-019.413803e-019.435438e-019.456414e-019.476749e-019.496461e-019.515569e-019.534089e-019.552038e-019.569434e-019.586292e-019.602628e-019.618456e-019.633794e-019.648653e-019.663050e-019.676998e-019.690509e-019.703597e-019.716275e-019.728556e-019.740450e-019.751970e-019.763128e-019.773933e-019.784397e-019.794531e-019.804345e-019.813847e-019.823049e-019.831958e-019.840584e-019.848937e-019.857024e-019.864853e-019.872433e-019.879771e-019.886876e-019.893753e-019.900411e-019.906856e-019.913094e-019.919133e-019.924979e-019.930637e-019.936114e-019.941415e-019.946546e-019.951512e-019.956319e-019.960971e-019.965473e-019.969831e-019.974048e-019.978130e-019.982080e-019.985903e-019.989602e-019.993182e-019.996647e-011.000000e+00)(z0.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+000.000000e+00)(u1.165265e+001.163355e+001.161412e+001.159438e+001.157433e+001.155395e+001.153326e+001.151226e+001.149094e+001.146931e+001.144737e+001.142511e+001.140255e+001.137967e+001.135650e+001.133301e+001.130923e+001.128515e+001.126076e+001.123609e+001.121112e+001.118585e+001.116030e+001.113447e+001.110835e+001.108196e+001.105528e+001.102834e+001.100112e+001.097363e+001.094589e+001.091788e+001.088961e+001.086108e+001.083231e+001.080329e+001.077402e+001.074451e+001.071476e+001.068478e+001.065457e+001.062413e+001.059346e+001.056257e+001.053146e+001.050013e+001.046860e+001.043685e+001.040489e+001.037273e+001.034037e+001.030781e+001.027506e+001.024210e+001.020896e+001.017563e+001.014212e+001.010842e+001.007454e+001.004048e+001.000624e+009.971819e-019.937227e-019.902463e-019.867527e-019.832422e-019.797146e-019.761702e-019.726092e-019.690315e-019.654372e-019.618264e-019.581991e-019.545555e-019.508952e-019.472187e-019.435254e-019.398159e-019.360895e-019.323466e-019.285869e-019.248103e-019.210166e-019.172058e-019.133776e-019.095318e-019.056682e-019.017865e-018.978866e-018.939680e-018.900304e-018.860736e-018.820970e-018.781005e-018.740832e-018.700449e-018.659852e-018.619034e-018.577988e-018.536708e-018.495190e-018.453423e-018.411402e-018.369117e-018.326561e-018.283721e-018.240588e-018.197154e-018.153403e-018.109324e-018.064899e-018.020114e-017.974950e-017.929384e-017.883394e-017.836948e-017.790014e-017.742555e-017.694521e-017.645860e-017.596503e-017.546374e-017.495378e-017.443406e-017.390328e-017.335995e-017.280223e-017.222812e-017.163523e-017.102079e-017.038180e-016.971465e-016.901544e-016.827975e-016.750278e-016.667908e-016.580275e-016.486744e-016.386625e-016.279160e-016.163555e-016.038972e-015.904478e-015.759131e-015.601901e-015.431708e-015.247414e-015.047800e-014.831508e-014.597068e-014.342739e-014.066424e-013.765412e-013.436072e-013.073274e-012.542264e-011.999903e-011.475130e-019.671848e-024.756439e-020.000000e+00)(k3.750000e-033.819034e-033.888036e-033.956962e-034.025775e-034.094437e-034.162910e-034.231161e-034.299149e-034.366841e-034.434202e-034.501197e-034.567793e-034.633956e-034.699657e-034.764862e-034.829543e-034.893671e-034.957218e-035.020158e-035.082465e-035.144114e-035.205084e-035.265351e-035.324897e-035.383701e-035.441746e-035.499014e-035.555491e-035.611162e-035.666015e-035.720038e-035.773220e-035.825553e-035.877029e-035.927640e-035.977382e-036.026251e-036.074241e-036.121351e-036.167581e-036.212930e-036.257398e-036.300988e-036.343701e-036.385541e-036.426512e-036.466618e-036.505867e-036.544264e-036.581815e-036.618530e-036.654414e-036.689477e-036.723727e-036.757176e-036.789832e-036.821707e-036.852811e-036.883155e-036.912748e-036.941603e-036.969734e-036.997150e-037.023864e-037.049887e-037.075234e-037.099914e-037.123942e-037.147330e-037.170089e-037.192233e-037.213773e-037.234722e-037.255093e-037.274897e-037.294147e-037.312856e-037.331036e-037.348699e-037.365858e-037.382525e-037.398713e-037.414437e-037.429709e-037.444546e-037.458963e-037.472976e-037.486606e-037.499871e-037.512794e-037.525402e-037.537722e-037.549786e-037.561629e-037.573294e-037.584822e-037.596266e-037.607683e-037.619130e-037.630683e-037.642412e-037.654404e-037.666748e-037.679541e-037.692890e-037.706908e-037.721714e-037.737439e-037.754221e-037.772200e-037.791528e-037.812362e-037.834869e-037.859220e-037.885591e-037.914168e-037.945140e-037.978705e-038.015064e-038.054428e-038.097012e-038.143038e-038.192734e-038.246332e-038.304072e-038.366202e-038.432969e-038.504624e-038.581427e-038.663619e-038.751455e-038.845164e-038.944956e-039.050990e-039.163396e-039.282201e-039.407306e-039.538439e-039.675079e-039.816325e-039.960734e-031.010615e-021.024931e-021.038542e-021.050752e-021.060554e-021.066511e-021.066593e-021.057983e-021.036889e-029.984647e-039.370632e-038.472322e-037.258676e-035.757290e-034.087174e-032.461174e-031.127691e-032.810236e-040.000000e+00)(eps2.549005e-042.592394e-042.637261e-042.683656e-042.731632e-042.781244e-042.832548e-042.885603e-042.940468e-042.997207e-043.055884e-043.116567e-043.179325e-043.244230e-043.311357e-043.380783e-043.452587e-043.526854e-043.603668e-043.683119e-043.765300e-043.850304e-043.938232e-044.029186e-044.123273e-044.220601e-044.321288e-044.425450e-044.533211e-044.644697e-044.760040e-044.879379e-045.002856e-045.130616e-045.262816e-045.399611e-045.541167e-045.687657e-045.839256e-045.996151e-046.158530e-046.326595e-046.500551e-046.680614e-046.867007e-047.059958e-047.259714e-047.466520e-047.680641e-047.902345e-048.131913e-048.369641e-048.615831e-048.870805e-049.134890e-049.408430e-049.691785e-049.985330e-041.028945e-031.060456e-031.093107e-031.126943e-031.162010e-031.198357e-031.236032e-031.275089e-031.315582e-031.357569e-031.401109e-031.446266e-031.493103e-031.541690e-031.592099e-031.644405e-031.698687e-031.755025e-031.813509e-031.874227e-031.937276e-032.002755e-032.070771e-032.141433e-032.214857e-032.291166e-032.370488e-032.452961e-032.538729e-032.627940e-032.720753e-032.817341e-032.917879e-033.022556e-033.131573e-033.245140e-033.363483e-033.486840e-033.615462e-033.749616e-033.889594e-034.035699e-034.188251e-034.347604e-034.514119e-034.688199e-034.870263e-035.060771e-035.260210e-035.469092e-035.687985e-035.917500e-036.158291e-036.411060e-036.676565e-036.955656e-037.249208e-037.558230e-037.883785e-038.227037e-038.589302e-038.971983e-039.376681e-039.805134e-031.025933e-021.074146e-021.125400e-021.179975e-021.238192e-021.300415e-021.367057e-021.438608e-021.515608e-021.598708e-021.688645e-021.786285e-021.892612e-022.008795e-022.136170e-022.276269e-022.430838e-022.601862e-022.791499e-023.002017e-023.235725e-023.494545e-023.779610e-024.090324e-024.422944e-024.768562e-025.110518e-025.421684e-025.663740e-025.790967e-025.761747e-025.556476e-025.193041e-024.727938e-024.238709e-023.799547e-023.463551e-023.258848e-023.191992e-02)(omega1.319358e-031.364571e-031.412122e-031.462146e-031.514787e-031.570198e-031.628540e-031.689989e-031.754727e-031.822949e-031.894865e-031.970696e-032.050677e-032.135060e-032.224114e-032.318121e-032.417387e-032.522235e-032.633009e-032.750075e-032.873828e-033.004683e-033.143087e-033.289514e-033.444472e-033.608498e-033.782174e-033.966112e-034.160971e-034.367453e-034.586304e-034.818328e-035.064380e-035.325370e-035.602280e-035.896147e-036.208089e-036.539295e-036.891043e-037.264696e-037.661708e-038.083642e-038.532165e-039.009068e-039.516259e-031.005578e-021.062983e-021.124076e-021.189108e-021.258349e-021.332086e-021.410630e-021.494312e-021.583490e-021.678543e-021.779881e-021.887943e-022.003202e-022.126163e-022.257370e-022.397406e-022.546898e-022.706521e-022.876998e-023.059110e-023.253691e-023.461643e-023.683938e-023.921615e-024.175806e-024.447713e-024.738642e-025.050001e-025.383307e-025.740191e-026.122413e-026.531890e-026.970661e-027.440966e-027.945187e-028.485933e-029.066013e-029.688447e-021.035654e-011.107384e-011.184424e-011.267192e-011.356138e-011.451760e-011.554593e-011.665219e-011.784270e-011.912437e-012.050471e-012.199187e-012.359480e-012.532321e-012.718769e-012.919993e-013.137259e-013.371953e-013.625605e-013.899870e-014.196593e-014.517774e-014.865634e-015.242609e-015.651351e-016.094827e-016.576303e-017.099378e-017.668023e-018.286635e-018.960145e-019.693918e-011.049405e+001.136724e+001.232093e+001.336356e+001.450443e+001.575409e+001.712430e+001.862847e+002.028156e+002.210071e+002.410522e+002.631749e+002.876291e+003.147084e+003.447584e+003.781736e+004.154284e+004.570789e+005.037940e+005.563702e+006.157894e+006.832498e+007.602315e+008.485850e+009.506585e+001.069429e+011.208715e+011.373530e+011.570393e+011.807996e+012.097991e+012.456162e+012.904251e+013.472856e+014.205991e+015.169973e+016.470889e+018.293745e+011.099508e+021.534119e+022.316831e+023.951550e+028.100399e+022.215461e+031.085578e+043.546658e+05)(v20.000000e+002.513480e-032.529344e-032.545188e-032.561003e-032.576780e-032.592509e-032.608184e-032.623796e-032.639334e-032.654793e-032.670164e-032.685439e-032.700609e-032.715668e-032.730609e-032.745423e-032.760106e-032.774649e-032.789045e-032.803290e-032.817378e-032.831302e-032.845056e-032.858637e-032.872040e-032.885259e-032.898290e-032.911129e-032.923772e-032.936217e-032.948459e-032.960495e-032.972323e-032.983940e-032.995344e-033.006532e-033.017503e-033.028254e-033.038784e-033.049092e-033.059176e-033.069035e-033.078669e-033.088075e-033.097254e-033.106204e-033.114925e-033.123416e-033.131676e-033.139705e-033.147501e-033.155065e-033.162395e-033.169490e-033.176350e-033.182974e-033.189358e-033.195503e-033.201406e-033.207067e-033.212481e-033.217647e-033.222562e-033.227223e-033.231626e-033.235766e-033.239640e-033.243242e-033.246566e-033.249606e-033.252355e-033.254806e-033.256950e-033.258778e-033.260279e-033.261444e-033.262260e-033.262714e-033.262794e-033.262485e-033.261772e-033.260640e-033.259072e-033.257052e-033.254562e-033.251585e-033.248105e-033.244106e-033.239572e-033.234490e-033.228847e-033.222632e-033.215836e-033.208457e-033.200489e-033.191934e-033.182796e-033.173082e-033.162803e-033.151972e-033.140605e-033.128720e-033.116333e-033.103465e-033.090130e-033.076342e-033.062111e-033.047436e-033.032313e-033.016721e-033.000630e-032.983991e-032.966738e-032.948786e-032.930020e-032.910306e-032.889481e-032.867351e-032.843696e-032.818262e-032.790770e-032.760910e-032.728354e-032.692753e-032.653748e-032.610976e-032.564084e-032.512743e-032.456645e-032.395550e-032.329262e-032.257672e-032.180748e-032.098570e-032.011297e-031.919194e-031.822622e-031.722024e-031.617892e-031.510778e-031.401268e-031.289916e-031.177304e-031.063965e-039.504224e-048.372119e-047.249176e-046.142471e-045.062066e-044.022492e-043.045122e-042.159411e-041.401467e-048.063348e-053.941013e-051.542601e-054.412643e-067.604023e-074.147692e-080.000000e+00))对速度入口边界进行设置，轴向速度设置为inletu，径向速度设置为0，具体设置如下图：速度入口边界动量设置示意图其次对压力出口边界展开设置，相关的设置如下图所示：压力出口边界动量设置示意图2.5初始化设置进行标准初始化设置，具体设置如下图：混合初始化设置示意图2.6计算设置此处进行的计算设置如下：运行计算设置示意图3后处理结果3.1后处理结果对扩散管内的仿真计算结果进行可视化处理，其速度云如下图所示：速度可视化云图3.2计算结果对比对扩散管壁压力系数进行计算，可以得到如下图所示的结果，由图可以发现，该结果与Fluent官方案例的结果一致：扩散管壁压力系数仿真计算结果文献计算结果来源：CFD仿真库
