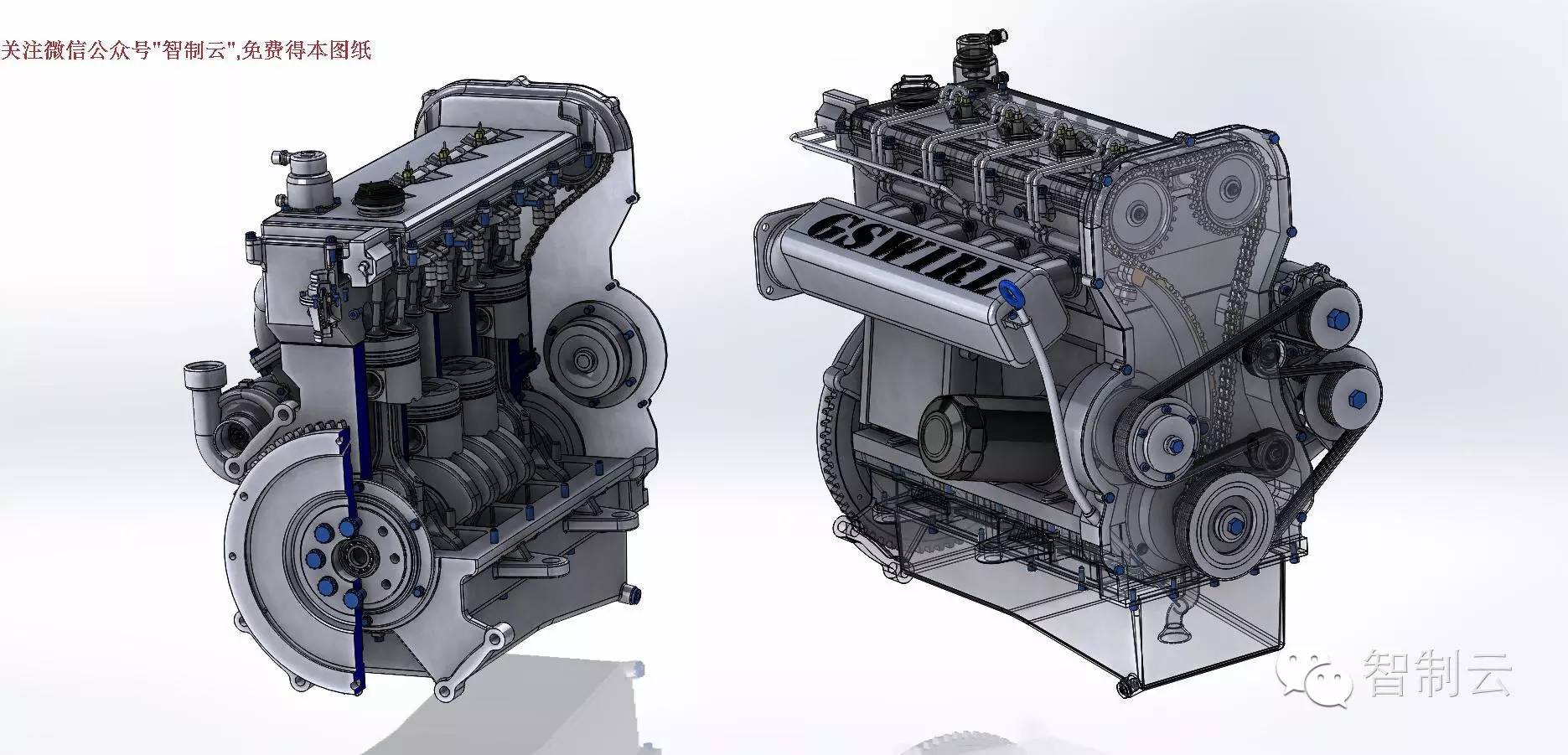

【发动机电机】GSwirl CR 200涡轮增压柴油发动机3D图纸 solidworks

GSwirl CR 200涡轮增压柴油发动机3D图纸 solidworks设计

文件大小：466MB

简介：SOLIDWORKS设计，有装配图有零件图，附STEP和X_T格式。

It has 2 litres of engine displacement, about 110 kW maximum power and 300 Nm torque. Engine calculations were made in Gamma Technologies's software and mechanical calculations were done manually by the disciplines of engine technology. Main purpose of the subject was to draw some kind of an assembly drawing where we can show all functional parts. This project was made in about 10 weeks, there must be parts which are not detailed (no drafts and some fillets on castings, dummy parts, no oil drains, water system is only a dummy pump) but you can see the connections and on drawing there should be some corrections.

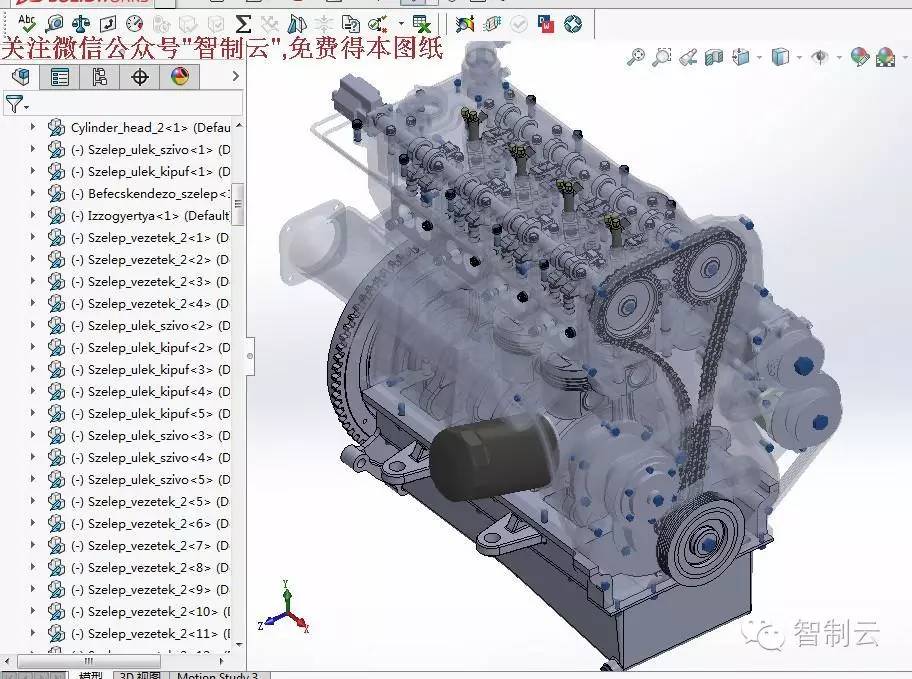

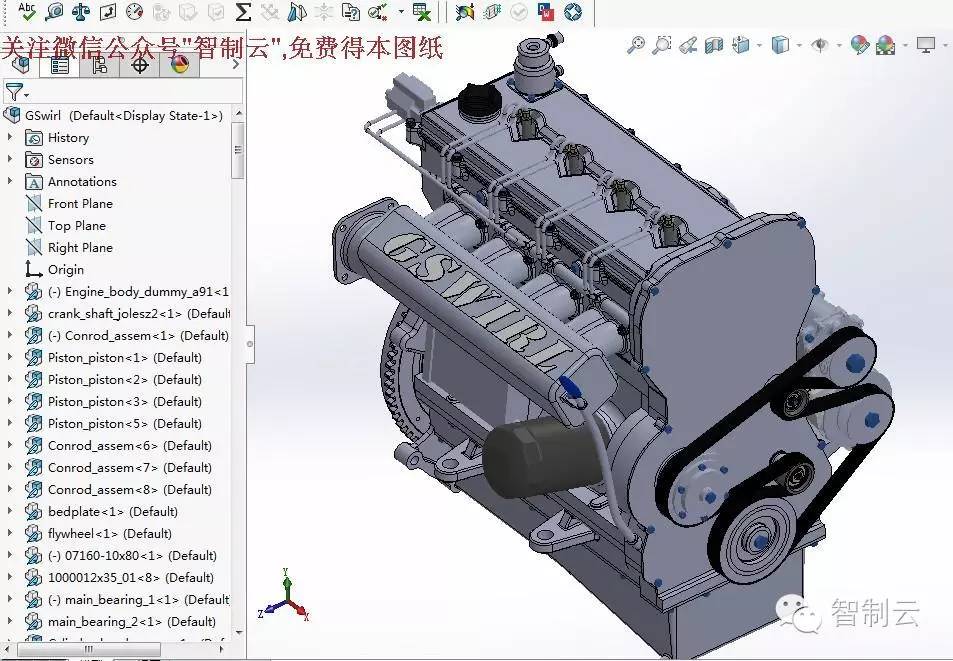

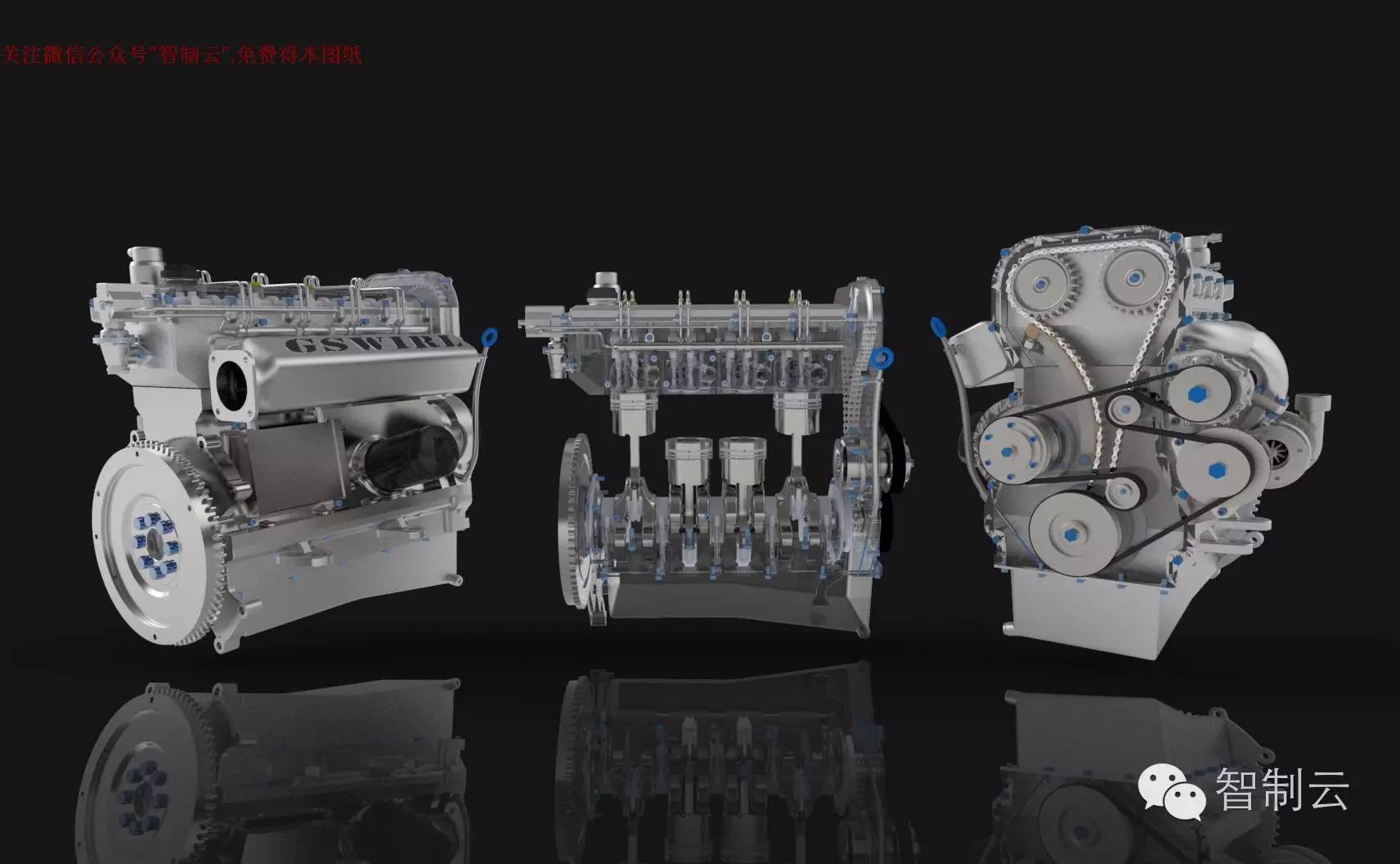

Made in Solidworks 2015 SP2, rendered in Keyshot 5.
