：框架和框架-核心筒智能设计模块增加一键导出PKPM/YJK模型功能
0
引言
引言

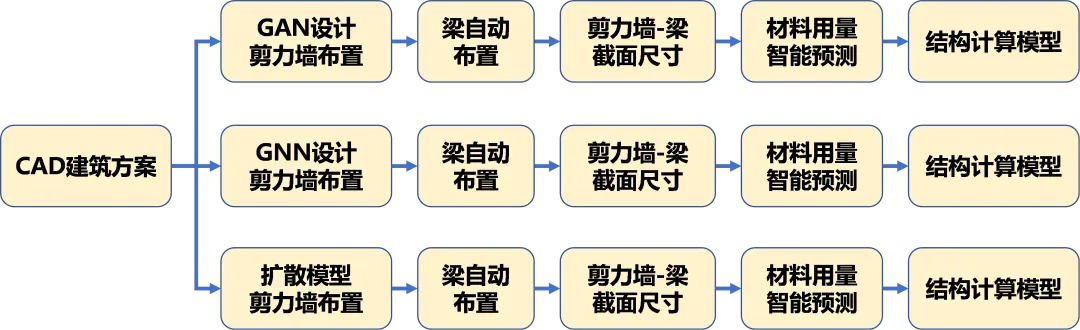

AIstructure-Copilot已经具备剪力墙结构、框架结构和框架-核心筒结构三种结构类型的智能设计能力，V0.3.9版本增加了框架结构和框架-核心筒结构一键导出PKPM/YJK计算模型功能，欢迎广大工程师试用。
1
增加计算模型导出功能
增加计算模型导出功能

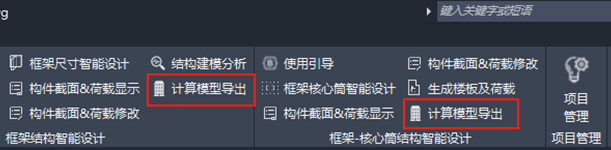

在框架结构和框架-核心筒结构的智能设计模块，分别增加了计算模型导出功能按键，用户在完成智能设计后，点击该功能选项，程序将自动生成pkpm.jwd和yjk.ymd模型文件，用户可在PKPM/YJK程序中直接打开这些文件，开展后续设计工作。
图1 增加计算模型导出功能
2
典型工程设计案例
典型工程设计案例
2.1 框架结构案例

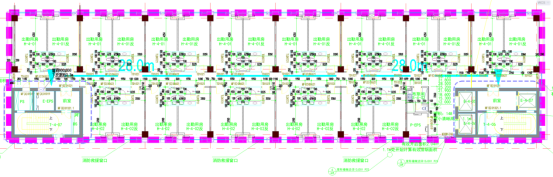

选取一个实际工程中的典型三层框架结构，总高9.6米，抗震设防烈度7度（0.15g）、场地类别Ⅲ类、设计地震分组为第一组，其平面布置图如图2（a）所示。框架结构智能设计结果如图2（b）所示，通过计算模型导出功能，分别生成pkpm.jwd和yjk.ymd模型文件，在PKPM软件和YJK软件中打开的三维模型分别如图2（c）和（d）所示。

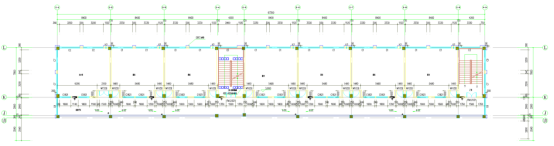

（a）平面布置图
（b）智能设计结果

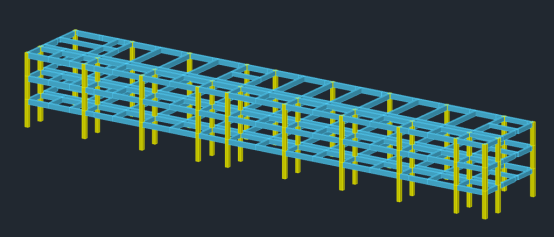

（c）导出的PKPM三维模型

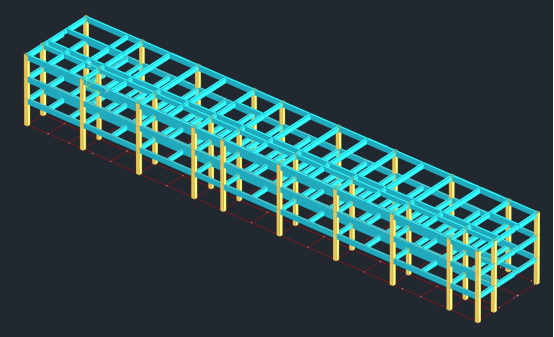

（d）导出的YJK三维模型
图2 框架结构设计案例
2.2 框架-核心筒结构案例
同样选取一个11层的框架-核心筒结构案例，总高39.3米（首层高5.4米、2层高4.2米、3-11层高3.3米），抗震设防烈度8度（0.20g），场地类别Ⅲ类，设计地震分组为第二组，其平面布置图如图3（a）所示。框架-核心筒结构的智能设计结果如图3（b）所示，通过计算模型导出功能，分别生成pkpm.jwd和yjk.ymd模型文件，在PKPM软件和YJK软件中打开的三维模型分别如图3（c）和（d）所示。

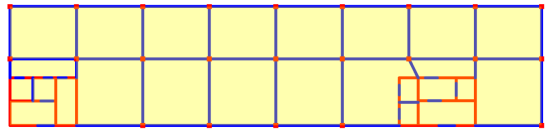

（a）平面布置图
（b）智能设计结果

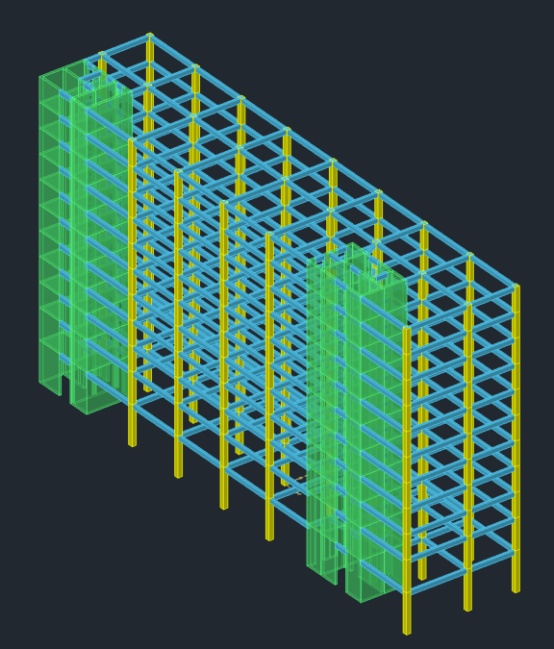

（c）导出的PKPM三维模型

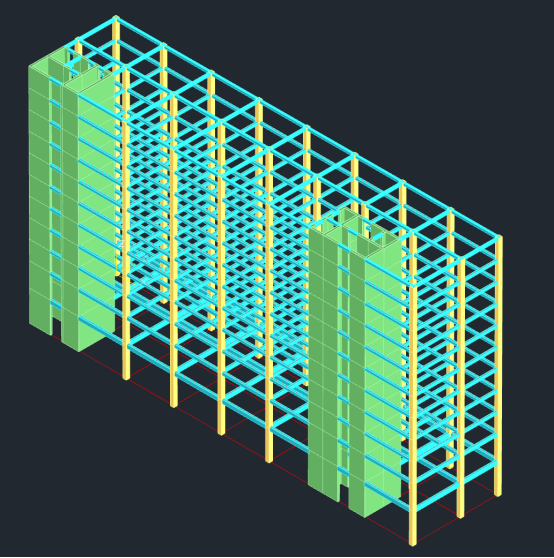

（d）导出的YJK三维模型
图3 框架-核心筒结构设计案例
3
结语
结语
AIstructure-Copilot-V0.3.9新增框架结构和框架-核心筒结构计算模型导出功能，可以更便捷地协助用户完成PKPM/YJK的模型转换工作，欢迎大家试用。
彩蛋：AIstructure-Copilot-V0.4.0即将迎来一次重要版本更新，增加一个大家期待已久的功能，敬请关注。
后续，我们还将不断完善相关产品功能。欢迎大家持续关注我们的工作，多多支持！
温馨提示：为更好使用AI设计工具，请仔细阅读使用说明书(https://ai-structure.com)。
