AIstructure-Copilot-V0.3.8：剪力墙智能设计模块完善倾斜梁智能设计功能

引言

AIstructure-Copilot-V0.3.8版本，剪力墙结构智能设计模块进一步完善了倾斜梁智能设计功能，使得设计结果更加符合工程实际需要。诚邀大家广泛试用，并给我们提出宝贵意见。

剪力墙结构智能设计模块进一步完善倾斜梁设计功能

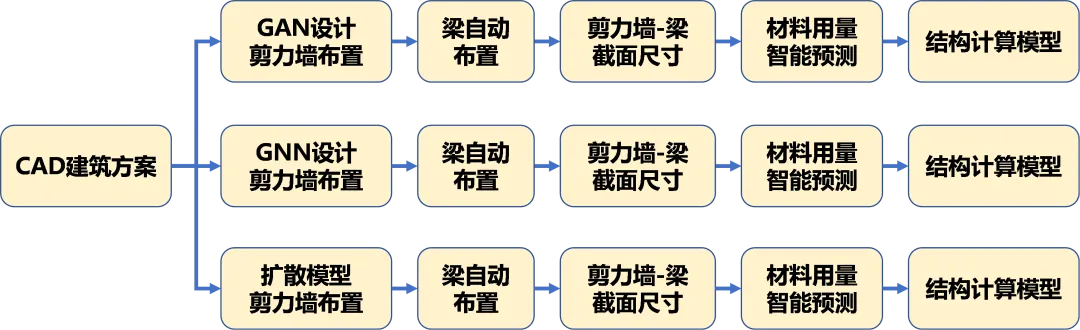

2025年4月14日，我们发布了AIstructure-Copilot-V0.3.4版本(详见：AIstructure-Copilot-V0.3.4：多种算法融合、提供新算法尝新功能)，同时将稳定版和研发中的最新测试版的设计结果都提供给用户，其中最新测试版对包含倾斜构件的复杂结构设计效果不理想。

AIstructure-Copilot-V0.3.8的最新测试版完善了倾斜梁智能设计功能，可以更好的进行倾斜梁构件的设计，如图1所示。

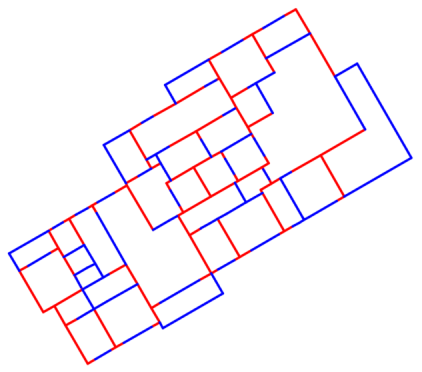

图1 AIstructure-Copilot-V0.3.8最新测试版的倾斜梁智能设计效果

不同算法倾斜梁设计效果的对比

图2（a）为一个复杂的建筑平面布置图，图2（b）和图2（c）分别为最新测试版和其他算法的设计结果，可以看出最新测试版的设计结果更适合该建筑平面布局，也更贴合工程师设计。

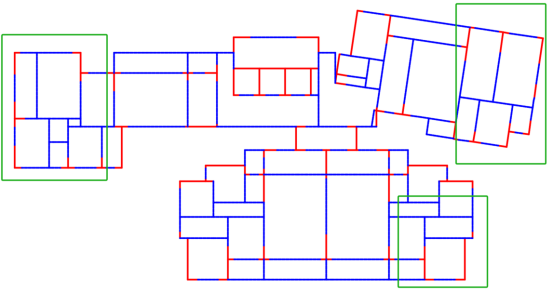

（a）建筑平面布置图

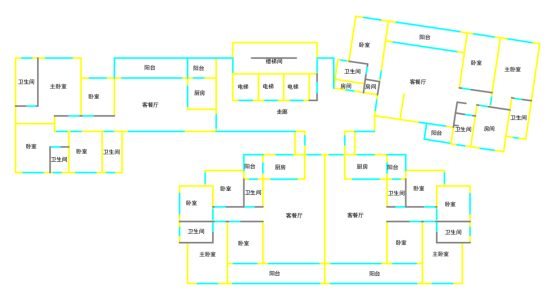

（b）最新测试版的梁智能设计结果

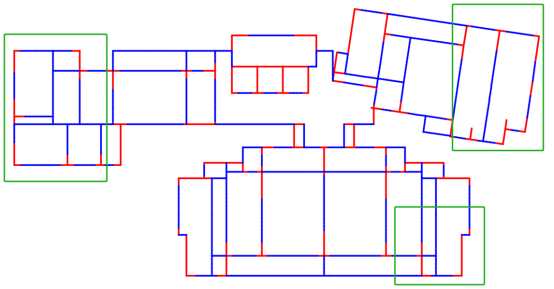

（c）算法A的梁智能设计结果

图2不同算法梁智能设计结果的对比

结语

AIstructure-Copilot发展至今，算法不断进化，带给用户更好的使用体验，可以更好的辅助工程师开展工作，欢迎大家试用。

后续，我们还将不断完善相关产品功能。欢迎大家持续关注我们的工作，多多支持！

温馨提示：为更好使用AI设计工具，请仔细阅读使用说明书(https://ai-structure.com)。

--End--
