考虑剪切效应和温度效应的VUMAT GTN子程序参考
c ======================================================================
c subroutine for GTN
c All rights of reproduction or distribution in any form are reserved.
c By Irfan Habeeb CN (PhD, Technion - IIT)
c ======================================================================
subroutine vumat(
C Read only -
1 nblock, ndir, nshr, nstatev, nfieldv, nprops, lanneal,
2 stepTime, totalTime, dt, cmname, coordMp, charLength,
3 props, density, strainInc, relSpinInc,
4 tempOld, stretchOld, defgradOld, fieldOld,
5 stressOld, stateOld, enerInternOld, enerInelasOld,
6 tempNew, stretchNew, defgradNew, fieldNew,
C Write only -
7 stressNew, stateNew, enerInternNew, enerInelasNew)
C
include 'vaba_param.inc'
C
dimension props(nprops), density(nblock), coordMp(nblock,*),
1 charLength(nblock), strainInc(nblock,ndir+nshr),
2 relSpinInc(nblock,nshr), tempOld(nblock),
3 stretchOld(nblock,ndir+nshr),
4 defgradOld(nblock,ndir+nshr+nshr),
5 fieldOld(nblock,nfieldv), stressOld(nblock,ndir+nshr),
6 stateOld(nblock,nstatev), enerInternOld(nblock),
7 enerInelasOld(nblock), tempNew(nblock),
8 stretchNew(nblock,ndir+nshr),
9 defgradNew(nblock,ndir+nshr+nshr),
1 fieldNew(nblock,nfieldv),
2 stressNew(nblock,ndir+nshr), stateNew(nblock,nstatev),
3 enerInternNew(nblock), enerInelasNew(nblock)
character*80 cmname
integer k, k1, k2, iter, Niter, iterC
C inputs
real*8 e, xnu, dens, sigy0, epbar0, eprate0, mpw, npw, bg,
1 cc, alpha, Cp, chi, temp0, tempIn, f0, q1, q2, fc, ff,
2 fndev, fnamp, fnmean, fsdev, fsamp, fsmean, kw, tol
C scalar parameters
real*8 mu, alamda, bulk, Gur, GurN, epbar, ep, dep,
1 eprate, eprateN, sigy, sighyd, sigeqv, sigyT, sigyN, dGdep,
2 trInc, fT, fs, fN, fNs, sigdotp, epbarN,
3 tempT, tempN, pi, sq2pi, arg, Astrn, Astrs, Bstrs, sigHrate,
4 isnuc, sigeff, fdot, J3, Wnh, devdotp, stnx, stnz, stnxz, stn1,
5 stn2, stnrat, dWork, dPwork
C Tensor/vectors
real*8 L(6,6), sOld(6), sNew(6), sigdev(6), sT(6),
1 np(6), dsig(6), Pep(6)

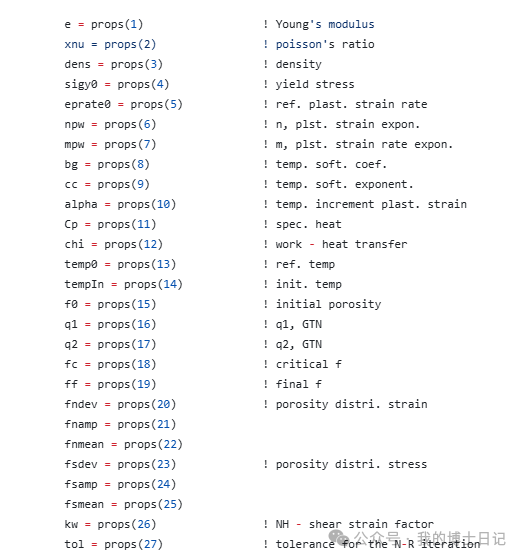

e = props(1) ! Young's modulus
xnu = props(2) ! poisson's ratio
dens = props(3) ! density
sigy0 = props(4) ! yield stress
eprate0 = props(5) ! ref. plast. strain rate
npw = props(6) ! n, plst. strain expon.
mpw = props(7) ! m, plst. strain rate expon.
bg = props(8) ! temp. soft. coef.
cc = props(9) ! temp. soft. exponent.
alpha = props(10) ! temp. increment plast. strain
Cp = props(11) ! spec. heat
chi = props(12) ! work - heat transfer
temp0 = props(13) ! ref. temp
tempIn = props(14) ! init. temp
f0 = props(15) ! initial porosity
q1 = props(16) ! q1, GTN
q2 = props(17) ! q2, GTN
fc = props(18) ! critical f
ff = props(19) ! final f
fndev = props(20) ! porosity distri. strain
fnamp = props(21)
fnmean = props(22)
fsdev = props(23) ! porosity distri. stress
fsamp = props(24)
fsmean = props(25)
kw = props(26) ! NH - shear strain factor
tol = props(27) ! tolerance for the N-R iteration
epbar0 = sigy0/e ! ref. plast. strain
mu = e/(2.d0*(1.d0+xnu))
alamda = e*xnu/((1.d0 + xnu) * (1.d0 - 2.d0*xnu))
bulk = e/(3.d0*(1.d0 - 2.d0*xnu))
C stiffness matrix
L = 0.d0
do k1 = 1, 3
do k2 = 1, 3
L(k1, k2) = alamda
end do
L(k1, k1) = alamda + 2.d0*mu
L(k1+3, k1+3) = 2.d0*mu
end do
C -------------------- simulation first step & later -------------------
do 30 k = 1, nblock
if (stateOld(k, 1) .eq. 0.d0) then
go to 10
else
go to 20
end if
C----------------------------- initial state ---------------------------
10 trInc = sum(strainInc(k, 1:3))
do k1 = 1, 3
stressNew(k, k1) = alamda*trInc + 2.d0*mu*strainInc(k, k1)
stressNew(k, k1+3) = 2.d0*mu*strainInc(k, k1+3)
end do
sigeff = sigy0 + sum( stressOld(k, 1:3) )/3.d0
stnx = stateOld(k, 11) + strainInc(k, 1)
stnz = stateOld(k, 12) + strainInc(k, 3)
stnxz = stateOld(k, 13) + strainInc(k, 5)
stn1 = 0.50*(stnx + stnz) + 0.5d0*sqrt((stnx - stnz)**2.d0
1 + 4.d0 * stnxz**2.d0)
stn2 = 0.50*(stnx + stnz) - 0.5d0*sqrt((stnx - stnz)**2.d0
1 + 4.d0 * stnxz**2.d0)
stnrat = stn2/stn1
if (stn1 .eq. 0.d0) stnrat = 0.d0
stateNew(k, 1) = 1.d0 ! initiation check
stateNew(k, 2) = 0.d0 ! plastic strain
stateNew(k, 3) = 0.d0 ! plastic strain rate
stateNew(k, 4) = sigy0 ! yield stress
stateNew(k, 5) = f0 ! porosity
stateNew(k, 6) = -1.d0 ! Gurson potential
stateNew(k, 7) = 0.d0 ! initial increment of pl. strain
stateNew(k, 8) = 0.d0 ! number of iterations
stateNew(k, 9) = sigeff ! eff. max. stress
stateNew(k, 10) = 1.d0 ! element damage
stateNew(k, 11) = stnx ! total strain, exx
stateNew(k, 12) = stnz ! total strain, eyy
stateNew(k, 13) = stnxz ! total strain, exy
stateNew(k, 14) = stn1 ! principal strain, stn1 >= stn2
stateNew(k, 15) = stn2 ! principal strain 2
stateNew(k, 16) = 0.d0 ! principal strain rate 1
stateNew(k, 17) = 0.d0 ! principal strain rate 2
stateNew(k, 18) = 0.d0 ! triaxiality
!tempNew(k) = tempIn
go to 30
C-------------------------- 2nd step and later -------------------------
20 epbar = stateOld(k, 2)
eprate = 0.d0
sigyT = max(sigy0, stateOld(k, 4))
fs = stateOld(k, 5)
tempT = tempOld(k)
sOld(1:6) = stressOld(k, 1:6)
trInc = sum(strainInc(k, 1:3))
do k1 = 1, 3
dsig(k1) = alamda*trInc + 2.d0*mu*strainInc(k, k1)
dsig(k1+3) = 2.d0*mu*strainInc(k, k1+3)
end do
sT(1:6) = sOld(1:6) + dsig(1:6)
sigeff = sigT + sum( sOld(1:3) )/3.d0
call fnsigcomp(sighyd, sigeqv, sigdev, sT)
call fnfs(fT, fs, fc, ff, q1)
C values
np = 0.d0
sNew = sT
epbarN = epbar
eprateN = 0.d0
sigyN = sigT
fN = fs
tempN = tempT
GurN = stateOld(k, 6)
Niter = 40. ! max number of N-R iterations
pi = 2.d0 * asin(1.d0)
sq2pi = sqrt(pi)
iter = 0
iterC = 0
Pep = 0.d0
C plastic flow vector
np = 3.d0 * sigdev/(sigyT*sigyT)
do k1 = 1, 3
np(k1)= np(k1)+ 3.d0*fs*q1*q2* sinh(1.5d0*sighyd*q2/sigyT)/sigyT
end do
np = np/sqrt(dot_product(np, np))
sigdotp = dot_product(sOld, np) + dot_product(sOld(4:6), np(4:6))
devdotp = dot_product(sigdev,np)+dot_product(sigdev(4:6),np(4:6))
do k1 = 1, 6
do k2 = 1, 6
Pep(k1) = Pep(k1) + L(k1, k2) * np(k2)
end do
end do
if (dot_product(sOld,sOld) .lt. 1.d-10) go to 27
ep = 0.d0
epmin = 0.d0
epmax = 1.d-5 !max(1.d-5, 3.d0*1.d-5)
C NR - iteration starts
do while (iter .lt. Niter)
iter = iter + 1
if (iter .gt. Niter-1.) then
print*, 'too many iterations, iter = ', iter
print*, 'Gurson = ', GurN
print*, 'Porosity, epmax ', fN, epmax
call XPLB_EXIT
end if
epbarN = epbar + ep
eprateN = ep/dt
tempN = tempT
call fnsigy(sigyN, sigy0, epbarN, epbar0, eprateN, eprate0, mpw,
1 npw, bg, cc, tempN, temp0)
if (sigyN .lt. sigyT) sigyN = sigyT
sigyrate = (sigyN - sigyT)/dt
C porosity distribution
Astrn = 0.d0
Astrs = 0.d0
Bstrs = 0.d0
isnuc = 0.d0
arg = (epbarN - fnmean)/fndev
if (arg .gt. 10.d0) arg = 10.d0
Astrn = fnamp*exp(-0.5d0*( arg )**2)/ (fndev*sq2pi)
if (sigeff .gt. stateOld(k, 9)) isnuc = 1.d0
if (isnuc .lt. 1.d0) go to 26
arg = (sigyT + sighyd - fsmean)/fsdev
if (arg .gt. 10.d0) arg = 10.d0
Bstrs = fsamp*exp(-0.5d0*( arg )**2)/ (fsdev*sq2pi)
26 Astrs = Bstrs
C Nahson-Hachinson parameter for shear
J3 = sigdev(1)*sigdev(2)*sigdev(3) + 2.d0*sigdev(4)*sigdev(5)*
1 sigdev(6) - sigdev(1)*sigdev(4)*sigdev(4) - sigdev(2)*
2 sigdev(5)*sigdev(5) - sigdev(3)*sigdev(6)*sigdev(6)
Wnh = 1.d0 - (13.5d0 * J3 / sigeqv**3.d0)**2.d0
C updating the parameters
fdot = (1.d0 - fs)*ep*sum(np(1:3))/dt + Astrn * eprateN
1 + Bstrs * sigyrate + kw*fs*Wnh*devdotp*eprateN/sigeqv
if (fdot .lt. 0.d0) fdot = 0.d0
fN = fs + fdot*dt
sNew = sT - Pep*ep * (1.d0 - fN)*sigyN/sigdotp
sigHrate = sum( sNew(1:3) - sOld(1:3) )/dt
if (sigHrate .lt. 0.d0) sigHrate = 0.d0
call fnfs(fNs, fN, fc, ff, q1)
call fnsigcomp(sighyd, sigeqv, sigdev, sNew)
call fngur(GurN, sighyd, sigeqv, sigyN, fNs, q1, q2)
if (abs(GurN) .lt. tol) exit
C elastic criteria, ep = 0 & Gur < 0
if ((ep .eq. 0.d0) .and. (GurN .lt. 0.d0)) go to 27
C rearranging the margins and new plastic strain increm.
if ((GurN .ge. 0.d0) .and. (ep .ge. epmin)) epmin = ep
if ((GurN .lt. 0.d0) .and. (ep .lt. epmax)) epmax = ep
ep = 0.5d0 * (epmax + epmin)
if ((iter .eq. 1) .and. (iterC .eq. 0)) ep = stateOld(k, 7)
C extending the plastic strain maxima.
if ((iter .gt. Niter-2) .and. ((epmax-ep) .lt. 1.d-8)) then
epmin = epmax
epmax = 10.d0 * epmax
ep = 0.5d0 * (epmin + epmax)
iter = 0
iterC = iterC + 1
if (epmax .gt. 1.d-2) then
print*, 'epmax, Gur', epmax, GurN
print*, 'reduce the strain rate'
call XPLB_EXIT
end if
end if
end do
C evaluating the min/max. principal strain (planar)
27 fN = fN + Bstrs * sigHrate/3.d0
stnx = stateOld(k, 11) + strainInc(k, 1)
stnz = stateOld(k, 12) + strainInc(k, 3)
stnxz = stateOld(k, 13) + strainInc(k, 5)
stn1 = 0.50*(stnx + stnz) + 0.5d0*sqrt((stnx - stnz)**2.d0
1 + 4.d0 * stnxz**2.d0)
stn2 = 0.50*(stnx + stnz) - 0.5d0*sqrt((stnx - stnz)**2.d0
1 + 4.d0 * stnxz**2.d0)
stnrat = stn2/stn1
if (stn1 .eq. 0.d0) stnrat = 0.d0
C work, plastic work and temp
dWork = dot_product( 0.5d0*(sOld(1:6) + sNew(1:6)),
1 strainInc(k, 1:6))
dPwork = 0.5d0 * ep * sigeqv
enerInternNew(k) = enerInternOld(k) + dWork/dens
enerInelasNew(k) = enerInelasOld(k) + dPwork/dens
!tempNew(k) = tempN + chi * sigdotp * ep / (dens*Cp)
C updating state variables

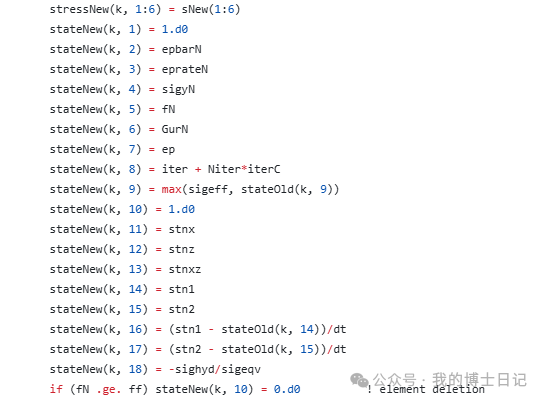

stressNew(k, 1:6) = sNew(1:6)
stateNew(k, 1) = 1.d0
stateNew(k, 2) = epbarN
stateNew(k, 3) = eprateN
stateNew(k, 4) = sigyN
stateNew(k, 5) = fN
stateNew(k, 6) = GurN
stateNew(k, 7) = ep
stateNew(k, 8) = iter + Niter*iterC
stateNew(k, 9) = max(sigeff, stateOld(k, 9))
stateNew(k, 10) = 1.d0
stateNew(k, 11) = stnx
stateNew(k, 12) = stnz
stateNew(k, 13) = stnxz
stateNew(k, 14) = stn1
stateNew(k, 15) = stn2
stateNew(k, 16) = (stn1 - stateOld(k, 14))/dt
stateNew(k, 17) = (stn2 - stateOld(k, 15))/dt
stateNew(k, 18) = -sighyd/sigeqv
if (fN .ge. ff) stateNew(k, 10) = 0.d0 ! element deletion
30 continue
return
end
C=========================== Equiv stress ==============================
subroutine fnsigcomp(sighyd, sigeqv, sigdev, s)
include 'vaba_param.inc'
real*8 sighyd, sigeqv, sigdev(6), s(6)
integer k
sighyd = sum(s(1:3))/3.d0
do k = 1, 3
sigdev(k) = s(k) - sighyd
sigdev(k+3) = s(k+3)
end do
sigeqv = sqrt(3.d0/2.d0 *(sigdev(1)**2.d0 + sigdev(2)**2.d0 +
1 sigdev(3)**2.d0 + 2.d0*sigdev(4)**2.d0 + 2.d0*sigdev(5)**2.d0 +
2 2.d0*sigdev(6)**2.d0 ))
end subroutine
C======================== Gurson yield function ========================
subroutine fngur(Gur, sighyd, sigeqv, sigy, fs, q1, q2)
include 'vaba_param.inc'
real*8 Gur, sighyd, sigeqv, sigy, fs, q1, q2
Gur = (sigeqv/sigy)**2 + 2.d0*q1*fs*cosh(1.5d0*q2*sighyd/sigy) -
1 (1.d0 + (q1*fs)**2)
end subroutine
C============================== Porosity ===============================
subroutine fnfs(f, fs, fc, ff, q1)
include 'vaba_param.inc'
real*8 f, fs, fc, ff, q1
if (fs .le. fc) then
f = fs
else
f = fc + (1.d0/q1 - fc)*(fs - fc)/(ff - fc)
end if
if (f .gt. ff) f = ff
end subroutine
C============================ Yield stress =============================
subroutine fnsigy(sigy, sigy0, epbar, epbar0, eprate, eprate0,
1 mpw, npw, bg, cc, temp, temp0)
include 'vaba_param.inc'
real*8 sigy, sigy0, epbar, epbar0, eprate, eprate0, mpw, npw,
1 bg, cc, temp, temp0, eprsig
eprsig = eprate/eprate0
if (eprate .le. eprate0) eprsig = 1.d0
sigy = sigy0*(eprsig**mpw)*((1.d0 + epbar/epbar0)**npw)*
1 (1.d0 +bg*exp(-cc*(temp0-273.d0))*(exp(-cc*(temp-temp0)) - 1.d0))
end subroutine
