AIstructure-Copilot-V0.3.6：新增框架结构智能设计功能

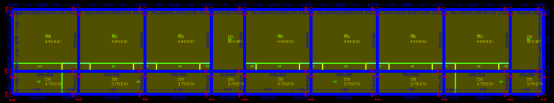

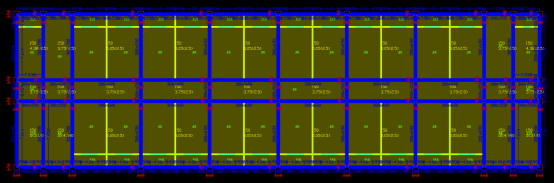

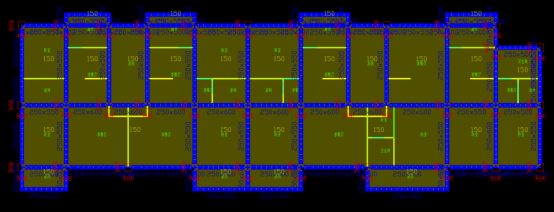

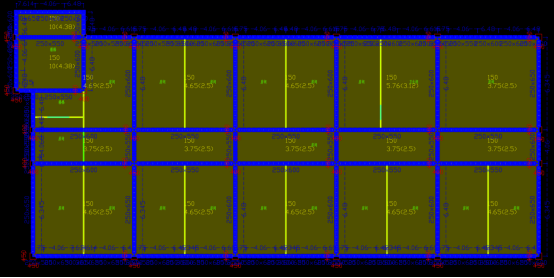

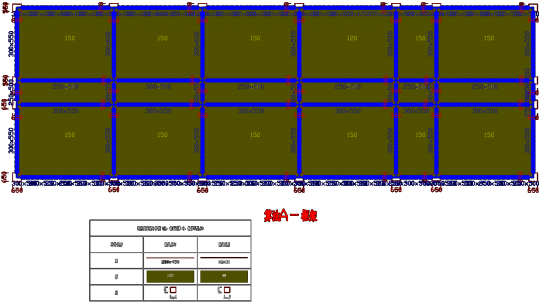

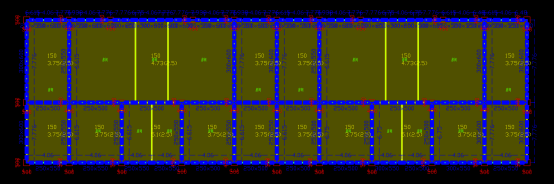

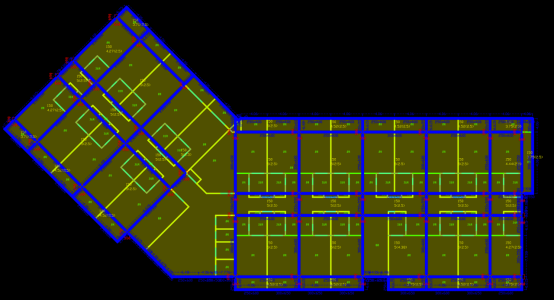

0引言 3月31日，国家标准《住宅项目规范》正式明确新建住宅层高不应低于3米。为应对这一行业规范的重要更新，我们迅速响应并对AIstructure-Copilot进行了针对性升级。新发布的V0.3.5版本，通过重新训练AI模型，显著提升了在3米层高条件下结构智能设计的力学性能合规率，旨在助力广大结构工程师高效满足新国标要求。诚邀各位试用并提出宝贵意见。1智能的关键在于具备学习的能力我们认同牛津词典对“智能 (Intelligence)”的定义，其核心在于具备“学习”的能力。在快速发展的当今世界，唯有持续学习与迭代，方能适应日新月异的技术标准与工程需求。AIstructure-Copilot采用生成式AI算法，通过对工程案例的不断学习，从而掌握新的技能，为该技术的未来发展提供了重要的潜能。这也是我们对智能设计这一技术的未来寄予厚望的重要原因。2适配3米层高建筑设计《住宅项目规范》对新建住宅的层高规定了新标准，并于今年5月1日起实施。新建住宅层高提升到不低于3米，在改善空间高度、提升室内天然采光、为住户提供更好的居住感受的同时，也对建筑抗侧刚度、层间位移角控制等有着直接的影响。AIstructure-Copilot此前的训练数据集很多基于2.8米层高的工程案例。当层高提升至3米后，原有模型生成的剪力墙布局、楼面梁配置等方案，在满足新规范的力学性能方面可能面临挑战。为解决此问题，我们首先依据新国标要求，对AI训练数据库进行了系统性的更新与扩充，确保纳入训练的工程案例均能在3米层高条件下满足各项力学性能规定。随后，我们采用更新后的高质量数据库对AI模型进行了重新训练，从而显著提升了AIstructure-Copilot在新规范下的设计质量与合规性。3提升合规性为检验AIstructure-Copilot-V0.3.5版本对3米层高建筑结构智能设计的可靠性，我们对单标准层建筑案例和多标准层建筑案例都进行了测试。结果表明，当层高提升到3米后，新版本设计的建筑结构力学合规率较此前版本提升了15%，使结构设计更加合理。典型案例如下：案例A： 如图1所示，某实际工程案例的标准层设计。在层高由2.8米调整为3米后，V0.3.4版本（图1a）的设计结果显示结构周期比为0.91，超出了规范限值要求。而0.3.5版本的设计结果如图1（b）所示，新版本的AI对部分剪力墙进行了延长，周期比为0.82，符合设计规范要求。 （a）0.3.4版本设计结果 （b）0.3.5版本设计结果图1 实际工程案例A的设计结果案例B：如图2所示，0.3.4版本的设计结果如图2（a）所示，由于层高从2.8米调整为3米，同样使得周期比超限了，0.3.5版本的设计结果如图2（b）所示，AI对部分剪力墙布置进行了调整，周期比为0.87，符合设计规范要求。 （a）0.3.4版本设计结果 （b）0.3.5版本设计结果图2 实际工程案例B的设计结果上述案例清晰表明，AIstructure-Copilot V0.3.5版本针对3米层高住宅的结构设计能力得到了显著增强。4结语通过对AI模型重新训练，AIstructure-Copilot-V0.3.5可高效适配新国标提升至3米层高后的结构设计，设计效果更好，力学合规率更高，带给用户更好的使用体验，可以更好的辅助工程师开展工作，欢迎大家试用。后续，我们还将不断完善相关产品功能。欢迎大家持续关注我们的工作，多多支持！ 温馨提示：为更好使用AI设计工具，请仔细阅读使用说明书(https://ai-structure.com)。--End--相关论文Liao WJ, Lu XZ, Huang YL, Zheng Z, Lin YQ, Automated structural design of shear wall residential buildings using generative adversarial networks, Automation in Construction, 2021, 132: 103931. DOI: 10.1016/j.autcon.2021.103931.Lu XZ, Liao WJ, Zhang Y, Huang YL, Intelligent structural design of shear wall residence using physics-enhanced generative adversarial networks, Earthquake Engineering & Structural Dynamics, 2022, 51(7): 1657-1676. DOI: 10.1002/eqe.3632.Zhao PJ, Liao WJ, Xue HJ, Lu XZ, Intelligent design method for beam and slab of shear wall structure based on deep learning, Journal of Building Engineering, 2022, 57: 104838. DOI: 10.1016/j.jobe.2022.104838.Liao WJ, Huang YL, Zheng Z, Lu XZ, Intelligent generative structural design method for shear-wall building based on “fused-text-image-to-image” generative adversarial networks, Expert Systems with Applications, 2022, 118530, DOI: 10.1016/j.eswa.2022.118530.Fei YF, Liao WJ, Zhang S, Yin PF, Han B, Zhao PJ, Chen XY, Lu XZ, Integrated schematic design method for shear wall structures: a practical application of generative adversarial networks, Buildings, 2022, 12(9): 1295. DOI: 10.3390/buildings1209129.Fei YF, Liao WJ, Huang YL, Lu XZ, Knowledge-enhanced generative adversarial networks for schematic design of framed tube structures, Automation in Construction, 2022, 144: 104619. DOI: 10.1016/j.autcon.2022.104619.Zhao PJ, Liao WJ, Huang YL, Lu XZ, Intelligent design of shear wall layout based on attention-enhanced generative adversarial network, Engineering Structures, 2023, 274: 115170. DOI: 10.1016/j.engstruct.2022.115170.Zhao PJ, Liao WJ, Huang YL, Lu XZ, Intelligent beam layout design for frame structure based on graph neural networks, Journal of Building Engineering, 2023, 63, Part A: 105499. DOI: 10.1016/j.jobe.2022.105499.Zhao PJ, Liao WJ, Huang YL, Lu XZ, Intelligent design of shear wall layout based on graph neural networks, Advanced Engineering Informatics, 2023, 55:101886, DOI: 10.1016/j.aei.2023.101886Liao WJ, Wang XY, Fei YF, Huang YL, Xie LL, Lu XZ, Base-isolation design of shear wall structures using physics-rule-co-guided self-supervised generative adversarial networks, Earthquake Engineering & Structural Dynamics, 2023, 52(11): 3281-3303. DOI:10.1002/eqe.3862.Feng YT, Fei YF, Lin YQ, Liao WJ, Lu XZ, Intelligent generative design for shear wall cross-sectional size using rule-embedded generative adversarial network, Journal of Structural Engineering-ASCE, 2023, 149(11). 04023161. DOI:10.1061/JSENDH.STENG-12206.Fei YF, Liao WJ, Lu XZ, Guan H, Knowledge-enhanced graph neural networks for construction material quantity estimation of reinforced concrete buildings, Computer-Aided Civil and Infrastructure Engineering, 2024, 39(4): 518-538. DOI: 10.1111/mice.13094.Zhao PJ, Fei YF, Huang YL, Feng YT, Liao WJ, Lu XZ, Design-condition-informed shear wall layout design based on graph neural networks, Advanced Engineering Informatics, 2023, 58: 102190. DOI: 10.1016/j.aei.2023.102190.Fei YF, Liao WJ, Lu XZ, Taciroglu E, Guan H, Semi-supervised learning method incorporating structural optimization for shear-wall structure design using small and long-tailed datasets, Journal of Building Engineering, 2023, 79: 107873. DOI：10.1016/j.jobe.2023.107873Liao WJ, Lu XZ, Fei YF, Gu Y, Huang YL, Generative AI design for building structures, Automation in Construction, 2024, 157: 105187. DOI: 10.1016/j.autcon.2023.105187Zhao PJ, Liao WJ, Huang YL, Lu XZ, Beam layout design of shear wall structures based on graph neural networks, Automation in Construction, 2024, 158: 105223. DOI: 10.1016/j.autcon.2023.105223Qin SZ, Liao WJ, Huang SN, Hu KG, Tan Z, Gao Y, Lu XZ, AIstructure-Copilot: assistant for generative AI-driven intelligent design of building structures, Smart Construction, 2024, DOI: 10.55092/sc20240001Gu Y, Huang YL, Liao WJ, Lu XZ, Intelligent design of shear wall layout based on diffusion models, Computer-Aided Civil and Infrastructure Engineering, 2024, 39(23):3610-3625. DOI: 10.1111/mice.13236Fei YF, Liao WJ, Zhao PJ, Lu X*, Guan H, Hybrid surrogate model combining physics and data for seismic drift estimation of shear-wall structures, Earthquake Engineering & Structural Dynamics, 2024, 53(10): 3093-3112. DOI: 10.1002/eqe.4151Han J, Lu XZ, Gu Y, Cai Q, Xue HJ, Liao WJ, Optimized data representation and understanding method for the intelligent design of shear wall structures, Engineering Structures, 2024, 315: 118500. DOI: 10.1016/j.engstruct.2024.118500Qin SZ, Guan H, Liao WJ, Gu Y, Zheng Z, Xue HJ, Lu XZ, Intelligent design and optimization system for shear wall structures based on large language models and generative artificial intelligence, Journal of Building Engineering, 2024, 95: 109996. DOI: 10.1016/j.jobe.2024.109996Wang ZH, Yue Y, Chen Y, Liao WJ, Li CS, Hu KG, Tan Z, Lu XZ. Expert experience-embedded evaluation and decision-making method for intelligent design of shear wall structures. Journal of Computing in Civil Engineering-ASCE, 2025, 39(1). DOI: 10.1061/JCCEE5.CPENG-6076Tan Z, Qin SZ, Hu KG, Liao WJ, Gao Y, Lu XZ, Intelligent generation and optimization method for the retrofit design of RC frame structures using buckling-restrained braces, Earthquake Engineering & Structural Dynamics, 2025, 54(2): 530-547. DOI: 10.1002/eqe.4268Yu Y, Chen Y, Liao WJ, Wang ZH, Zhang SL, Kang YJ, Lu XZ, Intelligent generation and interpretability analysis of shear wall structure design by learning from multidimensional to high-dimensional features, Engineering Structures, 2025, 325: 119472. DOI: 10.1016/j.engstruct.2024.119472Qin SZ, Liao WJ, Huang YL, Zhang Shulu, Gu Y, Han J, Lu XZ, Intelligent design for component size generation in reinforced concrete frame structures using heterogeneous graph neural networks, Automation in Construction, 2025, 171: 105967. Xia JK, Liao WJ, Han B, Zhang SL, Lu XZ, Intelligent co-design of shear wall and beam layouts using a graph neural network, Automation in Construction, 2025, 172: 106024. Qin SZ, Liao WJ, Tan Z, Hu KG, Gao Y, Lu XZ, Comparative analysis of intelligent retrofit design methods of RC frame structures using buckling-restrained braces. Bulletin of Earthquake Engineering, 2025, DOI: 10.1007/s10518-025-02164-3 来源：陆新征课题组
